Extra-Wide Towel Rails: UK Buying and Fitting Guide
Quick answer
An extra-wide towel rail can make use of a broad bathroom wall and give towels more horizontal hanging space. Choose it by the complete installed size, room heat requirement, output at your system temperatures and wall support. Width alone does not establish heat output, drying capacity or running cost.

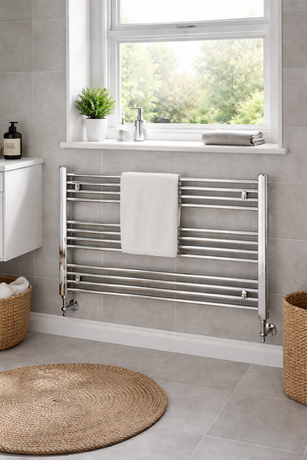

Illustrative radiator reference, not a dimensioned installation drawing. Confirm the selected model’s actual width, connections and output.
How should room use influence an extra-wide towel rail choice?
Separate towel warming from room heating. A family bathroom may need space for several towels, but the radiator must also meet the room's assessed heat requirement if it is the main heat source.
A wide, low rail and a tall, narrow one can have very different outputs.
| Field | Figure cited in this guide |
|---|---|
| Body width × height | 800mm × 400mm |
| Radiator pipe centres | 750mm |
| Listed heat output | 299W — rating conditions not established by this table |
| Installation suitability | Confirm exact drawing, fittings and model output at the design conditions |
Existing model references: 800mm-wide, 400mm-high black central-heating rail
Measure the usable wall, not just the gap between furniture. Include valves, pipework, wall projection, doors, drawer movement and access for cleaning. For small spaces rather than broad walls, use our cloakroom towel radiator guide.
Five guides for choosing an extra-wide rail
Compare width, height and heat output together
The extra width describes the overall radiator body. It does not tell you its pipe centres or the number of towels that will fit without folding. Bar arrangement and usable gaps matter too.
Our 800mm-wide, 400mm-high black central-heating rail illustrates the difference: the current listing states 750mm pipe centres and 299W heat output. Those are facts about that model, not every 800mm rail. Confirm the rating conditions and suitability with your installer.
Use our bathroom BTU calculator as an initial estimate, then confirm the room assessment and product output. The radiator sizing guide explains why a headline BTU/h figure needs context.
Confirm the complete installation
Ask for the exact dry weight, water content, bracket positions and mounting instructions. The installer needs to assess the wall and fixings for the filled assembly. Tiles alone do not establish a suitable supporting structure.
Check pipe centres, wall-to-pipe distance and valve projection separately. The measurement checklist and straight versus angled valve guide help you collect those details.
Choose the finish and heating package
Compare black or chrome by the actual model specifications and the fittings you want to match. Do not assume a finish creates a fixed percentage change in output across different designs.
Read the selected listing and variant. A central-heating radiator with a valve option is not automatically an electric or dual-fuel kit. Our heating-type comparison explains what each arrangement requires.
Ready to compare models?
Browse the extra-wide towel rail collection with your wall measurements and required output to hand. Check the current product details, selected package and availability before ordering.
If you are comparing a 700mm body width, the 700mm matt black collection brings the available heights and listed central-heating outputs together. Use it to build a shortlist, then check the selected model’s drawing, valve option and output at your system temperatures.
Frequently asked questions
Will an extra-wide rail heat a large bathroom?
Only if its output at the design conditions meets the room's assessed need. A larger-looking radiator is not a substitute for that comparison.
Can it go below any window?
No. Check sill height, projection, window movement, towels, valves and the model's installation clearances first.
Does the overall width tell me the pipe centres?
No. Overall body width and the distance between connection centres are separate measurements. Use the selected model’s drawing and the complete valve arrangement rather than applying one fixed subtraction to every rail.
How many towels will fit on an extra-wide rail?
Measure your usual towels and compare usable bars, gaps and hanging positions. Width alone does not establish a towel count or guaranteed drying time. Leave practical space around the fabric within the product’s intended use.
What should be checked before fixing it to a tiled wall?
Confirm the wall construction, mounting instructions, bracket positions and the weight of the filled assembly. Tiles alone do not establish adequate support. Have the installer choose a suitable fixing arrangement for the actual wall.
Does a valve option include the parts for electric operation?
Do not assume so. A central-heating valve selection is separate from an approved electric-only or dual-fuel package. Read the exact listing, selected variant and included parts before ordering.
Find the right heat output for your bathroom
Use our BTU calculator for an initial estimate, then compare suitable radiators with your installer.
