How to Choose the Correct Radiator Size (BTU Guide)

Choosing the correct radiator size is essential for efficient heating, comfort, and energy performance. An undersized radiator will struggle to heat a room, while an oversized unit can waste energy and reduce system efficiency. This guide explains what BTUs are, how to calculate the correct radiator size, and the key factors installers and homeowners must consider.

What Does BTU Mean?

BTU stands for British Thermal Unit. In heating terms, it represents the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit.

When selecting radiators, the BTU rating indicates how much heat output a radiator can deliver. The radiator you choose must meet or exceed the room’s required BTU heat loss.

Why Radiator Size Matters

Correct radiator sizing ensures:

Even and comfortable room temperatures
Faster warm-up times
Improved boiler efficiency
Reduced energy bills
Compliance with heating design best practice

Incorrect sizing often leads to cold spots, excessive boiler cycling, and customer dissatisfaction.

How to Calculate Radiator Size (BTU Requirement)

Step 1: Measure the Room

Measure the room dimensions:

Length (m)
Width (m)
Height (m)

Multiply these values to calculate the room volume.

Step 2: Determine Base BTU Requirement

As a general UK guideline:

Living rooms: 100–120 BTU per m³
Bedrooms: 90–100 BTU per m³
Bathrooms: 120–140 BTU per m³

Multiply the room volume by the relevant BTU factor.

Step 3: Apply Adjustment Factors

Adjust the base BTU requirement for:

Number of external walls
Window size and glazing type
Insulation quality
Ceiling height above 2.4 m
Desired room temperature

Many installers allow an additional 10–20% margin to ensure sufficient heat output.

Example Radiator BTU Calculation

Room size:

Length: 4 m
Width: 3 m
Height: 2.4 m

Room volume:
4 × 3 × 2.4 = 28.8 m³

Living room BTU requirement:
28.8 × 110 = 3,168 BTU

Recommended radiator output:
3,200–3,500 BTU

Radiator Types and Heat Output

Different radiator styles produce different heat outputs even at the same size.

Panel Radiators

Type 11, 21, and 22 outputs vary significantly
Double panel radiators provide higher BTU output
Compact and cost-effective

Column Radiators

Lower output per width compared to panel radiators
Often require larger sizes to match BTU demand
Suited to traditional or designer installations

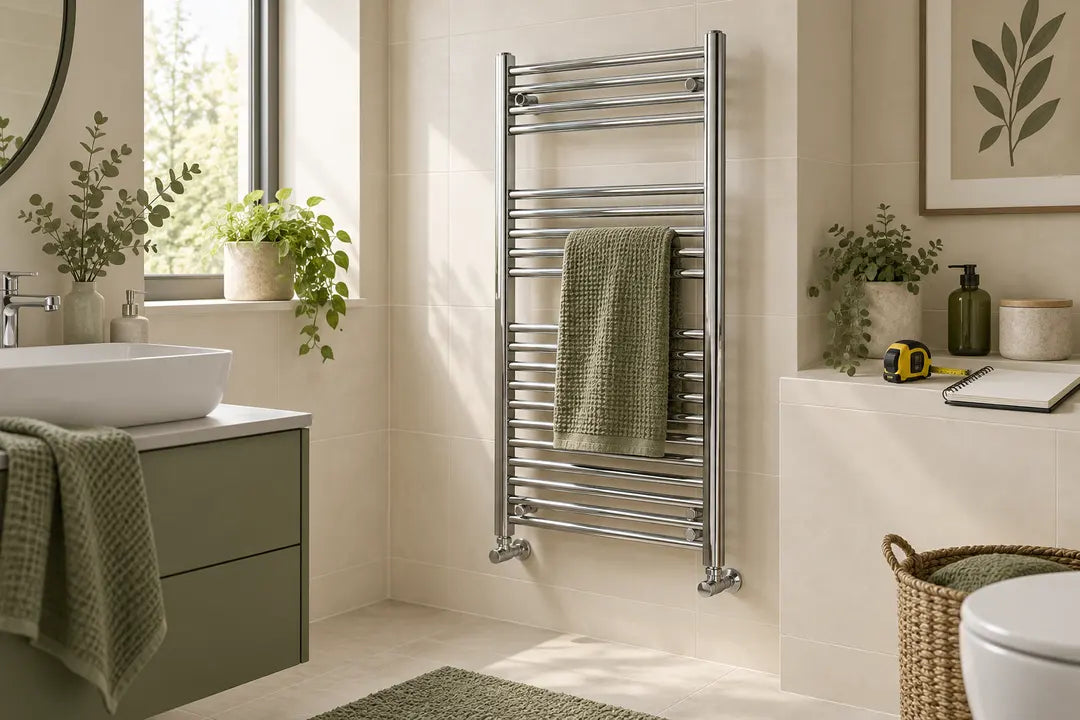

Towel Radiators

Typically lower BTU output
Often require supplementary heating in bathrooms
Output varies depending on pipe centres and bar density

Central Heating System Considerations

When selecting radiator size, also consider:

Boiler flow temperature
Low-temperature systems (heat pumps)
Radiator spacing and wall position
Thermostatic radiator valves (TRVs)

Lower flow temperatures require larger radiators to achieve the same BTU output.

Common Radiator Sizing Mistakes

Choosing radiators based on appearance only
Ignoring insulation levels
Not allowing for heat loss through external walls
Undersizing towel radiators in bathrooms
Failing to consider low-temperature systems

Avoiding these mistakes ensures reliable heating performance.

Installer Best Practice Tips

Always calculate BTU requirements per room
Check manufacturer heat output tables
Allow headroom for future system changes
Confirm output at the system’s operating temperature

Frequently Asked Questions (FAQs)

How many BTUs do I need per square metre?

As a rough guide, UK homes typically require 300–400 BTU per square metre, depending on insulation and room use.

Is it better to oversize or undersize a radiator?

It is generally better to slightly oversize a radiator to ensure adequate heat output and faster warm-up times.

Do heat pumps require larger radiators?

Yes. Heat pumps operate at lower flow temperatures and usually require radiators with a higher surface area to deliver sufficient heat.

Can I use multiple radiators instead of one large radiator?

Yes. Multiple radiators can improve heat distribution and comfort, provided the total BTU output meets the room’s requirement.

Conclusion

Choosing the correct radiator size based on BTU Calculations requirements is critical for efficient and comfortable heating. By accurately calculating room heat loss and selecting radiators with sufficient output, installers can ensure optimal system performance and long-term customer satisfaction.
