How to Measure Pipe Centres for Radiators (Installer’s Guide)

Correct pipe centre measurement is critical when installing or replacing radiators. Incorrect measurements can lead to misaligned valves, unnecessary pipework alterations, and increased installation time. This installer’s guide explains how to measure radiator pipe centres accurately, outlines standard UK dimensions, and highlights common mistakes to avoid.

What Are Radiator Pipe Centres?

Radiator pipe centres are the horizontal distance between the centre of one radiator connection pipe and the centre of the other. This measurement determines whether a radiator will align correctly with existing pipework and valves.

Pipe centres are always measured:

Centre-to-centre
Left pipe to right pipe
In millimetres (mm)

This measurement is essential when replacing an existing radiator without altering pipework.

Tools Required to Measure Pipe Centres

Tape measure (metric)
Marker or pencil
Spirit level
Vernier caliper (optional for exposed pipework)

Using the correct tools ensures consistent and accurate results, particularly on retrofit installations.

How to Measure Pipe Centres for Radiators (Step-by-Step)

Step 1: Locate the Pipe Centre Points

For standard pipe sizes:

15 mm copper pipe: centre is 7.5 mm from the edge
10 mm pipe: centre is 5 mm from the edge

If radiator valves are already installed, measure from valve spindle centre to valve spindle centre.

Step 2: Measure Centre-to-Centre

Measure horizontally from the centre of one pipe to the centre of the other:

Measure straight across
Avoid measuring outside-to-outside or inside-to-inside
Record the measurement in millimetres

Step 3: Check Level and Alignment

Use a spirit level to confirm both pipes are level. Uneven pipework can cause incorrect pipe centre readings and valve misalignment during installation.

Standard Radiator Pipe Centre Measurements (UK)

While exact dimensions vary by manufacturer, the following are common radiator pipe centre sizes:

Radiator Width	Typical Pipe Centres
400 mm	~350 mm
500 mm	~450 mm
600 mm	~550 mm
700 mm	~650 mm
800 mm	~750 mm

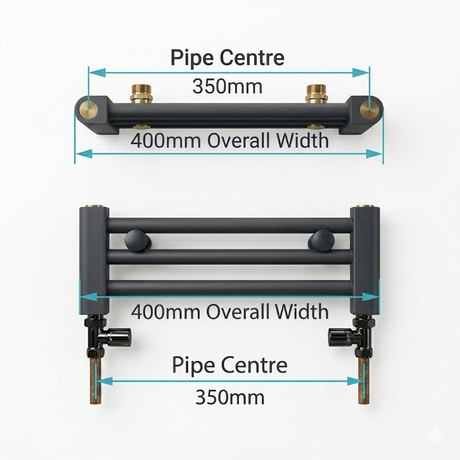

Rule of thumb: Radiator pipe centres are usually 50 mm less than the radiator width to allow for valve connections.

Floor vs Wall Pipework Measurements

Floor-Mounted Radiator Pipes

Common in older properties and retrofits
Pipe centres must align precisely with valve inlets
Minor discrepancies can sometimes be resolved with adjustable or offset radiator valves

Wall-Mounted Radiator Pipes

Typical in new builds
Measure from the centre of the pipe where it exits the wall
Allow for plaster thickness and final wall finishes

Measuring Pipe Centres for Towel Radiators

Towel radiators typically have fixed pipe centres with little or no tolerance. Always check manufacturer specifications before purchase or installation.

Common towel radiator pipe centre sizes include:

400 mm
450 mm
500 mm

Accurate measurement is essential, as pipework alterations are often required if centres do not match.

Column Radiators and Non-Standard Pipe Centres

Column radiators may have variable or non-standard pipe centres depending on:

Number of columns
Section width
Connection position

Always consult the manufacturer’s technical drawings before ordering or fitting.

Common Pipe Centre Measurement Mistakes

Measuring outside-to-outside instead of centre-to-centre
Assuming pipe centres match radiator width
Ignoring valve type (straight vs angled)
Failing to account for uneven floors or walls
Not checking manufacturer specifications

Avoiding these errors saves time and prevents unnecessary pipe modifications.

What to Do If Pipe Centres Don’t Match

If existing pipe centres do not match the new radiator:

Use offset radiator valves
Select a radiator with compatible pipe centres
Adjust pipework (last resort)
Use adjustable valve tails where permitted

Installer Best Practice Tips

Measure twice before ordering radiators
Always verify measurements against technical datasheets
Dry-fit valves before final tightening
Allow tolerance for expansion and finishing

Frequently Asked Questions (FAQs)

What are radiator pipe centres?

Radiator pipe centres are the horizontal distance measured from the centre of one radiator pipe to the centre of the other. This measurement ensures the radiator aligns correctly with existing pipework and valves.

How do you measure pipe centres for radiators?

Pipe centres are measured centre-to-centre using a tape measure. Measure horizontally from the centre of one pipe (or valve spindle) to the centre of the other, always recording the measurement in millimetres.

Are radiator pipe centres the same as radiator width?

No. Radiator pipe centres are typically around 50 mm less than the overall radiator width to allow space for radiator valves and connections.

What are standard radiator pipe centre measurements in the UK?

Common UK radiator pipe centre sizes include 350 mm, 450 mm, 550 mm, 650 mm, and 750 mm, depending on the radiator width and manufacturer.

Do towel radiators have fixed pipe centres?

Yes. Most towel radiators have fixed pipe centres with very little adjustment tolerance. Always check the manufacturer’s technical specifications before installation.

What if my pipe centres do not match the radiator?

If pipe centres do not match, installers can use offset radiator valves, select a compatible radiator, or adjust pipework if necessary. click here if you need pipe/valve reducer from 15mm to 10mm and 15mm to 8mm

Conclusion

Measuring radiator pipe centres accurately is a fundamental part of professional radiator installation. Correct measurements ensure proper valve alignment, minimise installation time, and deliver a clean, professional finish. Always confirm pipe centres before ordering radiators or valves to avoid costly errors on site.
