Bathroom Extractor Fan Buying Guide UK: Sizes and Controls

Quick answer

Choose a bathroom extractor fan by the ventilation route, required airflow, duct size and controls—not colour or a “silent” label alone. Confirm the installed performance and electrical suitability with your installer, then compare the specific 4-inch or 6-inch model.

Posted by Huseyin Aras 7 min read

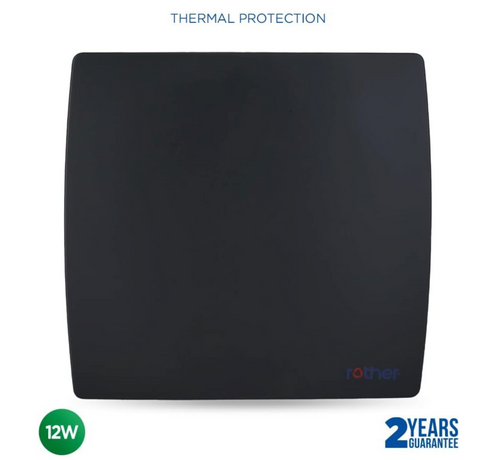

Front view of a matt black bathroom extractor fan

Updated . Huseyin Aras, Coventry Towel Radiator’s bathroom heating and product sourcing specialist, has over 18 years of experience in bathroom heating and supplier sourcing.

In what order should you choose a bathroom extractor fan?

Assess the room and duct route before choosing the fan size or controls. Then compare the exact model’s published specifications with the installer’s requirements.

100 mm vs 150 mm bathroom extractor fans at a glance
Nominal duct When to compare Rated airflow
100 mm (4-inch) A standard en-suite or smaller bathroom with an existing 100 mm duct, if the route can deliver the required extraction. Varies by model. Check the manufacturer’s airflow rating in m³/h and how much air the fan can move through your duct route.
150 mm (6-inch) A larger main bathroom or wet room where the installer specifies more airflow and the duct route suits a 150 mm connection. 255 m³/h for the 150 mm matt black WW-150QTH fan with humidistat and timer. This is the catalogue rating.

Room size helps you decide what to compare. The duct route, outlet, replacement air and required installed extract rate determine which fan is suitable. See our worked bathroom extract rate example.

  1. Assess the room and moisture. Consider shower use and any persistent condensation or damp.
  2. Check the route outdoors. Record the duct diameter, route, bends and external outlet.
  3. Choose the controls. Compare timed operation with humidity sensing.
  4. Confirm installation suitability. Have the electrician check the product, location and supply arrangements.

A product’s advertised airflow does not establish the extraction achieved through every duct route. Equally, a larger fan is not a guaranteed repair for a blocked outlet or an unsuitable installation.

What do Part F and Part P mean for a bathroom extractor fan?

In England, Approved Document F, Volume 1 gives 15 L/s (54 m³/h) as the minimum extract rate for an intermittent extract system in a dwelling bathroom. Continuous systems follow separate guidance. Compare the figure with airflow at the installed extract point. Check which edition applies to your project. Other UK nations have their own building standards.

Approved Document P covers electrical safety in homes in England and explains when work is notifiable. Bathroom zones come from BS 7671, Section 701. Ask a qualified electrician to identify the zone and check the fan’s instructions and electrical protection.

  • Zone 0: This includes the inside of a bath or shower tray, with specific rules for trayless showers. Plan to mount a standard bathroom extractor fan elsewhere.
  • Zone 1: This includes the space above a bath or shower within the defined limits. A fixed, permanently connected fan can be suitable if the manufacturer permits it and the installation meets the zone requirements.
  • Zone 2: Where this zone applies, it extends beyond zone 1. Equipment in zones 1 and 2 generally needs at least IPX4, or IPX5 where water jets are expected. The electrician should check the actual layout and proposed position.

100 mm vs 150 mm extractor fan replacement checklist

  1. Measure the duct connection. With the fan isolated, ask your installer to measure across the inside of the accessible round duct opening or identify the existing fan’s outlet size from its model number. A nominal 100 mm duct takes a 4-inch fan and a nominal 150 mm duct takes a 6-inch fan. Check the existing opening, the duct route and the outlet outdoors before changing sizes.
  2. Check the front panel and depth separately. The matt black WW-150QTH fits 150 mm ducting and has a 193 × 193 mm front panel. Measure the flat space around the opening, check for nearby trim or cabinets, and check that the rear body and duct have enough depth. Use the selected model’s drawing to confirm fixing positions.
  3. Choose the controls. A humidistat starts a compatible fan when moisture reaches the set level, which is useful if shower steam is the main concern. A run-on timer keeps the fan operating for a set period after its trigger clears. Ask your electrician to confirm how the selected model works with the existing supply and switch.

Five guides to help you choose

Already seeing water at the grille? See why a bathroom extractor fan can drip water to distinguish duct condensation from rain ingress or a plumbing leak.

Compare our current fan range

Our range includes 4-inch matt black, 4-inch white and 6-inch matt black bathroom fans.

The black options have humidity sensing and a timer; the white option is timer only. Check the model and supplied instructions before ordering. A 4-inch fan uses a nominal 100mm duct size; a 6-inch fan uses 150mm. These measurements describe the duct connection, not the front cover.

Browse the bathroom extractor fan collection after the installer confirms the requirements.

A current 150mm fan example: what the figures mean

The 6-inch matt black WW-150QTH fan listing states a 150mm duct connection, 255m³/h airflow, 21W power input, humidity sensing and a 1–30 minute adjustable run-on timer. These are catalogue specifications checked on 26 October 2026, not measurements from your bathroom. The 255m³/h figure is not a guarantee of extraction through every duct route.

The 4-inch white timer fan is a different, 100mm option with timer-only control. Decide the required installed performance and connection size before comparing finish or controls. Use the 150mm selection guide and the duct-route checklist together.

Persistent moisture needs its cause assessed. The bathroom moisture checklist helps separate ventilation observations from leaks and other building problems.

Assess noise and maintenance realistically

Compare stated noise figures only when their measurement conditions are understood. Sound in your bathroom also depends on installation and surroundings; “silent” in a title does not mean inaudible in every room.

Follow the fan’s maintenance instructions and keep the ventilation system checked. The government’s existing-home ventilation guide for England recommends regular fan cleaning and leaving background vents unobstructed.

Buying questions

Does a humidity sensor mean I never need a timer?

No. They are different controls, and their interaction depends on the model. Confirm the operating instructions.

Can I fit a larger fan to the same opening?

Do not assume so. Compare the duct diameter, opening, route and installation requirements.

Will a new fan cure all damp?

No. Persistent damp needs its cause assessed; water leaks and building defects require appropriate repair.

Does 4-inch or 6-inch describe the front cover?

No. These are nominal duct-connection sizes: 100mm and 150mm respectively. Check the actual product drawing for the fascia, opening and available installation depth.

Does the advertised airflow prove extraction in my bathroom?

No. The duct route, bends, outlet and replacement-air provision affect installed performance. Ask the installer to assess the complete ventilation arrangement.

Do the black and white fans have identical controls?

Check the selected model. The store’s black options have humidity sensing and a timer; the white option is timer only. The finish is not a substitute for reading the control specification.
