800mm Towel Rail Pipe Centres, Valves and Fitting UK
Quick answer
For an 800mm towel rail, check the radiator connection centres, existing pipes, selected valves, wall distance and support as one assembly. The reviewed models list 750mm pipe centres, but that does not make every existing 750mm pipe arrangement a straight swap.
Keep these measurements separate
| Measurement | What to establish |
|---|---|
| 800mm body width | The radiator body’s overall side-to-side dimension. |
| Radiator connection centres | The centres shown on the actual model drawing; the reviewed range lists 750mm. |
| Existing pipe centres | The centre-to-centre distance and direction of the pipes you have. |
| Wall-to-pipe centres | How far the relevant centre line sits from the finished wall. |
| Projection | How far the installed radiator body projects from the wall. |
| Installed envelope | Space for body, valves, pipework, towels and required access. |
Survey the existing pipework
- Measure pipe centres accurately and record wall distance.
- Photograph where the pipes emerge and the orientation of the existing valves.
- Identify the actual proposed radiator model and obtain its drawing.
- Compare the selected valve-and-tail arrangement with the existing pipes.
- Agree any alterations before ordering or removing the old rail.
Do not apply a universal width-minus-50mm rule to an unfamiliar radiator. The current 750mm examples are product data for this reviewed range, not a rule for every 800mm rail.
Use the pipe-centre measuring guide to label each dimension. For the separate depth measurements, read the wall-to-pipe distance and projection guide. Measure the finished wall surface and identify any uncertainty before choosing parts.
Select the valve shape from the complete geometry
Straight, angled and corner valves have different connection geometry. The appropriate choice depends on where the pipes arrive and how the radiator connections are arranged. Do not select by colour alone or assume that every wall-fed pipe requires the same valve shape.
Confirm connection sizes and compatibility with the actual radiator and pipe material. Check whether the selected product variant includes a valve kit or is supplied without valves. For the general definitions, read our radiator valve-shape guide.

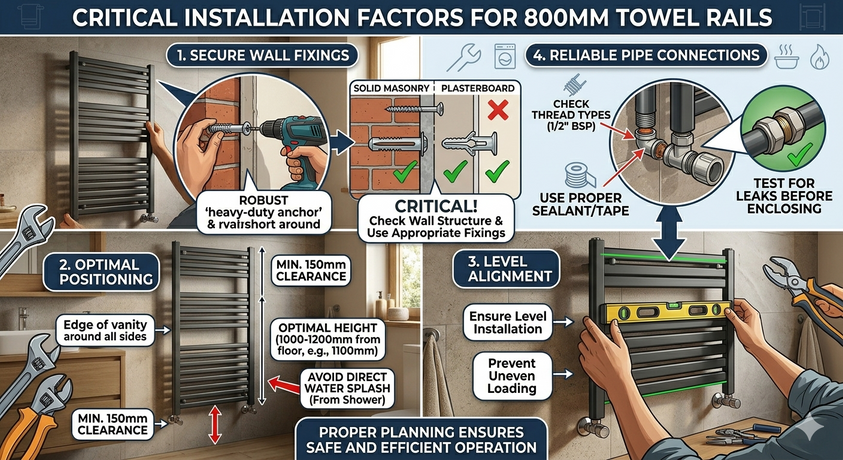

Confirm wall support and fixing positions
Obtain the actual dry weight, water content and bracket instructions, then have the installer assess the wall construction and suitable fixings. Tiles or a plasterboard finish do not show the full supporting structure. Supplied fixings may not suit every wall.
Check for hidden services before drilling. Keep the vent, valves and any controls accessible. A towel rail is not a grab rail or a support for body weight unless specifically designed and approved for that use.
Planning a low rail below a window also needs a separate clearance check. The under-window planning guide shows which window measurements to collect; it does not set universal clearances for every 800mm model.
Agree preparation and handover
The person doing the work must establish suitable cooling, isolation and any draining before opening fittings. Follow the model instructions for fitting and the system instructions for filling, treatment, air release and leak checks. Electric and dual-fuel work also needs assessment of the complete electrical assembly and location.
At handover, retain the instructions, relevant records and an explanation of the controls. Return to the black-versus-chrome comparison after the fitting requirements are clear, or compare a narrower 600mm layout if the complete assembly will not fit.
Frequently asked questions
Will an 800mm towel rail fit my existing 750mm pipe centres?
Not automatically. The reviewed models list 750mm radiator connection centres, but the complete valve-and-tail arrangement, pipe direction and wall distance must match the proposed installation. Have the installer confirm the fit.
Are pipe centres always 50mm less than the radiator width?
No. That relationship appears in the reviewed 800mm models, but it is not a universal fitting rule. Use the drawing and published connection dimensions for the exact radiator.
Should I choose straight or angled valves for my 800mm rail?
Choose from the complete connection geometry, pipe size and radiator connection arrangement. Pipe location or black/chrome finish alone does not establish the correct valve. Confirm compatibility with the installer.
Can I reuse the old brackets or fixing holes?
Only if the new model’s bracket instructions, support requirements and wall assessment allow it. Do not assume matching body width means matching support positions or suitable fixings.
Will the supplied wall fixings suit plasterboard or a tiled wall?
The visible finish does not establish the supporting wall construction. The installer must assess the substrate and specify suitable support and fixings for the filled assembly. Supplied fixings are not suitable for every wall.
Can an 800mm towel radiator be used as a grab rail?
Do not use it to support body weight unless the product is specifically designed and approved for that purpose. A towel radiator and its mounting arrangement should not be assumed to provide mobility support.
Complete the fitting plan
Browse wide towel radiators after the complete dimensions are clear. Confirm the room’s heating requirement with the 800mm heat-output guide and use the pre-order checklist before buying. Send the Coventry team the proposed product link and labelled measurements if a specification needs clarification.
