How to Measure Pipe Centres for Radiators (Installer’s Guide)

Quick Answer

Radiator pipe centres are measured from the centre of one pipe to the centre of the other. For most UK radiators, pipe centres are approximately 50 mm less than the radiator width.

💡 Key Takeaway:

Always measure centre-to-centre. While the 50mm rule is a helpful estimate, always verify the specific technical datasheet for your radiator model before purchasing to ensure a perfect fit.

Correct pipe centre measurement is critical when installing or replacing radiators. Incorrect measurements can lead to misaligned valves, unnecessary pipework alterations, and increased installation time. This installer’s guide explains how to measure radiator pipe centres accurately, outlines standard UK dimensions, and highlights common mistakes to avoid.

What Are Radiator Pipe Centres?

Radiator pipe centres are the horizontal distance between the centre of one radiator connection pipe and the centre of the other.

Centre-to-centre
Left pipe to right pipe
In millimetres (mm)

Tools Required to Measure Pipe Centres

Tape measure (metric)
Marker or pencil
Spirit level
Vernier caliper

How to Measure Pipe Centres for Radiators (Step-by-Step)

Step 1: Locate the Pipe Centre Points

If valves are installed, measure from valve spindle centre to valve spindle centre.

Step 2: Measure Centre-to-Centre

Measure horizontally from the centre of one pipe to the centre of the other.

Step 3: Check Level and Alignment

Use a spirit level to confirm both pipes are level. Uneven pipework can cause valve misalignment.

Installer Tip: In retrofit installations, check alignment before ordering to prevent unnecessary pipework adjustments.

Standard Radiator Pipe Centre Measurements (UK)

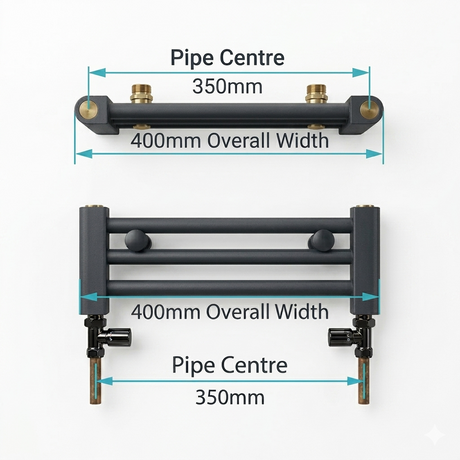

Radiator Width	Typical Pipe Centres
400 mm	~350 mm
500 mm	~450 mm
600 mm	~550 mm
700 mm	~650 mm
800 mm	~750 mm

Floor vs Wall Pipework Measurements

Floor-Mounted Radiator Pipes

Pipe centres must align precisely with valve inlets.

Wall-Mounted Radiator Pipes

Measure from the centre of the pipe where it exits the wall.

Measuring Pipe Centres for Towel Radiators

Towel radiators have fixed pipe centres. Always check manufacturer specifications.

Common Pipe Centre Measurement Mistakes

Measuring outside-to-outside
Assuming pipe centres match radiator width
Ignoring valve type

What to Do If Pipe Centres Don’t Match

Use offset radiator valves
Select a compatible radiator
Adjust pipework

Use offset radiator valves or pipe reducers to correct small alignment differences. Our range includes 15mm to 10mm adaptors for 10mm diameter pipework and 15mm to 8mm adaptors for 8mm diameter pipework, suitable for different installation setups.

Radiator Pipe Centres FAQs

What are radiator pipe centres?: Radiator pipe centres are the horizontal distance measured from the centre of one radiator pipe to the centre of the other. This measurement ensures the radiator aligns correctly with existing pipework and valves.
How do you measure pipe centres for radiators?: Pipe centres are measured centre-to-centre using a tape measure. Measure horizontally from the centre of one pipe (or valve spindle) to the centre of the other, always recording the measurement in millimetres.
What if my pipe centres do not match the radiator?: If pipe centres do not match, installers can use offset radiator valves, select a compatible radiator, or adjust pipework if necessary. In some cases, pipe adaptors or valve reducers can help bridge small alignment differences.
What is the standard measurement for radiator pipe centres?: Radiator pipe centres are measured in millimetres from the centre of one pipe to the centre of the other. In most UK installations, the measurement is typically about 50 mm less than the radiator width, although this varies by manufacturer.
How do I find the centre of a pipe accurately?: To find the centre of a pipe, measure its diameter and divide by two, then mark that midpoint. For example, a 15 mm copper pipe has a centre point 7.5 mm from the outer edge.
Do all radiators have the same pipe centre measurement?: No. Pipe centres vary depending on radiator type, size, and manufacturer. Panel radiators often follow general sizing patterns, while towel and column radiators may have fixed or non-standard centres.
Can I adjust radiator pipe centres without moving pipes?: Yes, in many cases. Installers often use offset radiator valves or adjustable tails to compensate for small differences. Larger mismatches may require pipework modification.
Are radiator pipe centres measured horizontally or vertically?: Pipe centres are measured horizontally between the two connection points. Vertical measurements are not used for pipe centre calculations.
Do towel radiators always have fixed pipe centres?: Yes, most towel radiators have fixed pipe centres set by the manufacturer. The pipework must match exactly or be adapted during installation.
Why is measuring pipe centres important before buying a radiator?: Accurate measurement ensures the radiator aligns with existing pipework and valves. Incorrect measurements can lead to installation delays, additional costs, or pipe alterations.
Can pipe centres vary between brands?: Yes. Even radiators of the same size can have different pipe centres depending on the manufacturer. Always check the technical specification sheet before purchasing.
What is the most common mistake when measuring pipe centres?: The most common mistake is measuring outside-to-outside instead of centre-to-centre. This leads to incorrect sizing and misaligned radiator installation.
Should I measure pipe centres before or after removing the old radiator?: You should always measure before removing the old radiator to ensure accurate matching with existing pipework.
Do angled radiator valves affect pipe centre measurements?: No. Pipe centres remain unchanged regardless of valve type, although angled or offset valves can help correct small alignment issues.

Conclusion

Measuring accurately ensures proper valve alignment and a professional finish. Always confirm pipe centres before ordering.
