Choosing Towel Radiator Height: Wall and Towel Space UK

Quick answer

Choose towel radiator height from the usable wall area, intended mounting position, practical towel arrangement and model output. Overall body height is not the floor-to-top installed height, and a taller rail is not automatically the right heater for the room.

Posted by Huseyin Aras 6 min read

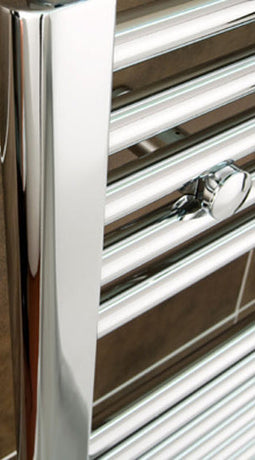

Illustrative bathroom with a chrome towel radiator.

Illustrative scene; use the actual product instructions and specification for your installation.

Part of our complete towel radiator size guide. This guide focuses on height; the width and projection guide covers the separate horizontal and depth checks.

How should you measure usable height for a towel radiator?

Record the finished floor, any window ledge, shelf, basin, worktop or other fixture that limits the proposed position. Include door and cupboard movement.

Measure the radiator body separately from the clearances and fittings required by its instructions.

The mounting position affects the overall top and bottom levels. A 1000mm-high body does not specify how high it will sit above the floor. Use the bracket drawing, wall support and permitted mounting arrangement to establish the final position.

Allow for what sits below the rail

Bottom valves, an electric element controller, cable route or dual-fuel T-piece can extend the complete arrangement beyond the body. Allow for operating the controls and future service access. Do not move the element to an unapproved orientation just to shorten the installed height.

Compare supply-pipe and radiator pipe centres with the selected fittings. Use the full measuring checklist to record width, height and depth together.

Compare usable bars and practical reach

Look at the actual bar layout and openings, then compare your towels in the arrangement you expect to use. Two rails with similar overall heights can have different usable hanging layouts. Do not assume every extra bar is a separate place for a bath towel.

Consider who needs to hang and remove towels and operate the controls. A high installation may fit the wall while being awkward to use. If several towels overlap, more body height alone does not establish that they will dry quickly.

Height and heat output need separate checks

Compare the exact taller and shorter models at the same operating conditions. Height can change the available emitting area, but there is no universal watts-per-millimetre rule for all towel rails. Finish, design and heating package matter too.

Use the heat-output selection guide before choosing a height to heat the whole bathroom. If wall height or output remains unsuitable, compare another layout or emitter arrangement rather than forcing a tall model into the available gap.

For a fixed-width example, our 700mm black towel rail planning guide shows how five available body heights fit into a wider wall-space, output and valve assessment. Use the example alongside your own towel sizes and mounting position.

A three-height example: the 550mm chrome range

The current 550mm-wide chrome range has 400, 600 and 800mm body heights. Compare the three at the same proposed position: mark each body outline and then add the fittings, towel overhang and access it needs.

  • 400mm high: investigate a lower wall area, checking fittings below it and the towel arrangement rather than assuming it fits under a ledge.
  • 600mm high: compare its bar layout, reach and installed top position with your actual towels.
  • 800mm high: check the upper fixing positions and comfortable reach as well as the extra body height.

None of these heights is a guaranteed towel count or bathroom-size rating. The listed water-fed outputs are 645, 1000 and 1558 BTU/h respectively; confirm their rating conditions and the planned system output separately. Use the 550mm chrome buying guide to put the height decision alongside pipe measurements, valves and heating type.

Make a short height comparison

  • Body height and proposed top and bottom positions.
  • Fittings, required clearances and maintenance space.
  • Usable towel layout and reach.
  • Exact model output at the planned conditions.
  • Wall support and installer’s drawing check.

For restricted width, use the tight-wall shortlist alongside narrow towel rail options. Where a lower, broader arrangement is more practical, compare extra wide towel rails.

Check the complete outline before ordering

For a replacement beneath a window, compare the proposed top and bottom positions with the actual ledge, existing pipes and selected valves. A lower body may create more space above the rail while still needing a different valve arrangement below it. Do not use the old brackets as the starting point for the new model unless its instructions permit that arrangement.

Ask the installer to mark the complete proposed outline, including fittings and access space, before the order is finalised. Use the pre-order checklist to record the agreed model and selected option. If the remaining wall space points towards a lower, wider rail, compare width and height together using the complete UK size guide.

Frequently asked questions

Does a 1000mm-high towel radiator finish 1000mm above the floor?

No. That figure describes the radiator body. Its top position also depends on where the bottom of the body is mounted. Fittings, required clearances and the permitted mounting arrangement need to be considered separately.

Will a taller towel radiator always hold more towels?

Not necessarily. Compare the actual bar layout, openings and your towel sizes. More bars do not automatically provide separate, usable hanging space, particularly when towels overlap.

Can I reuse my old brackets when changing height?

Do not assume so. Check the selected model’s specified brackets, fixing positions and wall-support requirements. Have the installer assess any existing fixings before considering reuse.

How much space should I leave below a window?

Use the clearances and mounting requirements for the selected model, alongside the window ledge, valves and service access. There is no single gap that this guide can specify for every towel radiator and window arrangement.

Will choosing a taller model guarantee a warmer bathroom?

No. Compare the exact model’s heat output at the planned operating conditions with the room heat requirement. Height alone is not a heat-output calculation. Read the room heat-output guide before choosing.

How high should the controls and towel bars be?

Consider who will use them and whether they can be reached comfortably, then check the permitted installation with the installer. Practical reach does not replace the product’s clearances, mounting or electrical requirements.

Find the right heat output for your bathroom

Use our BTU calculator for an initial estimate, then compare suitable radiators with your installer.
