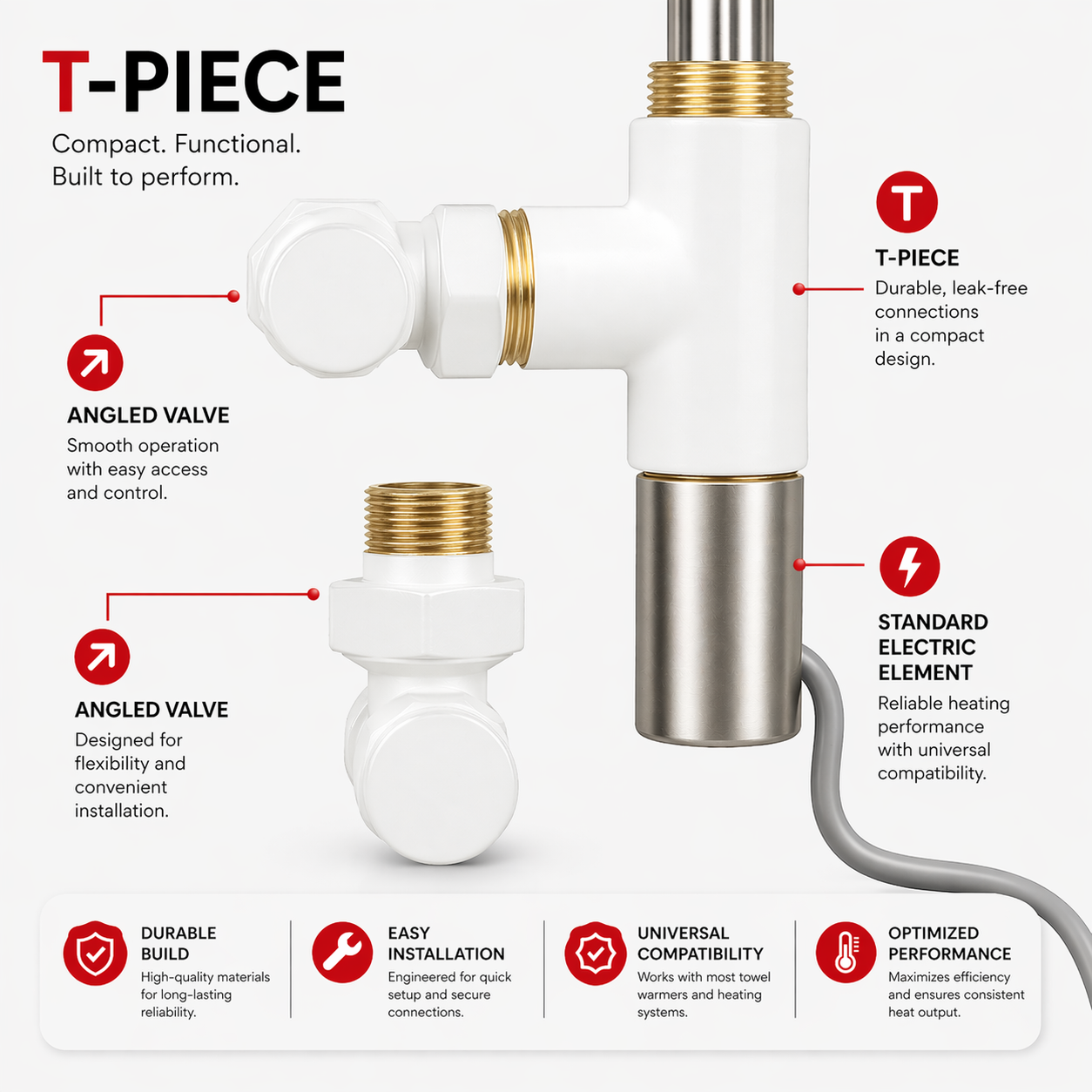

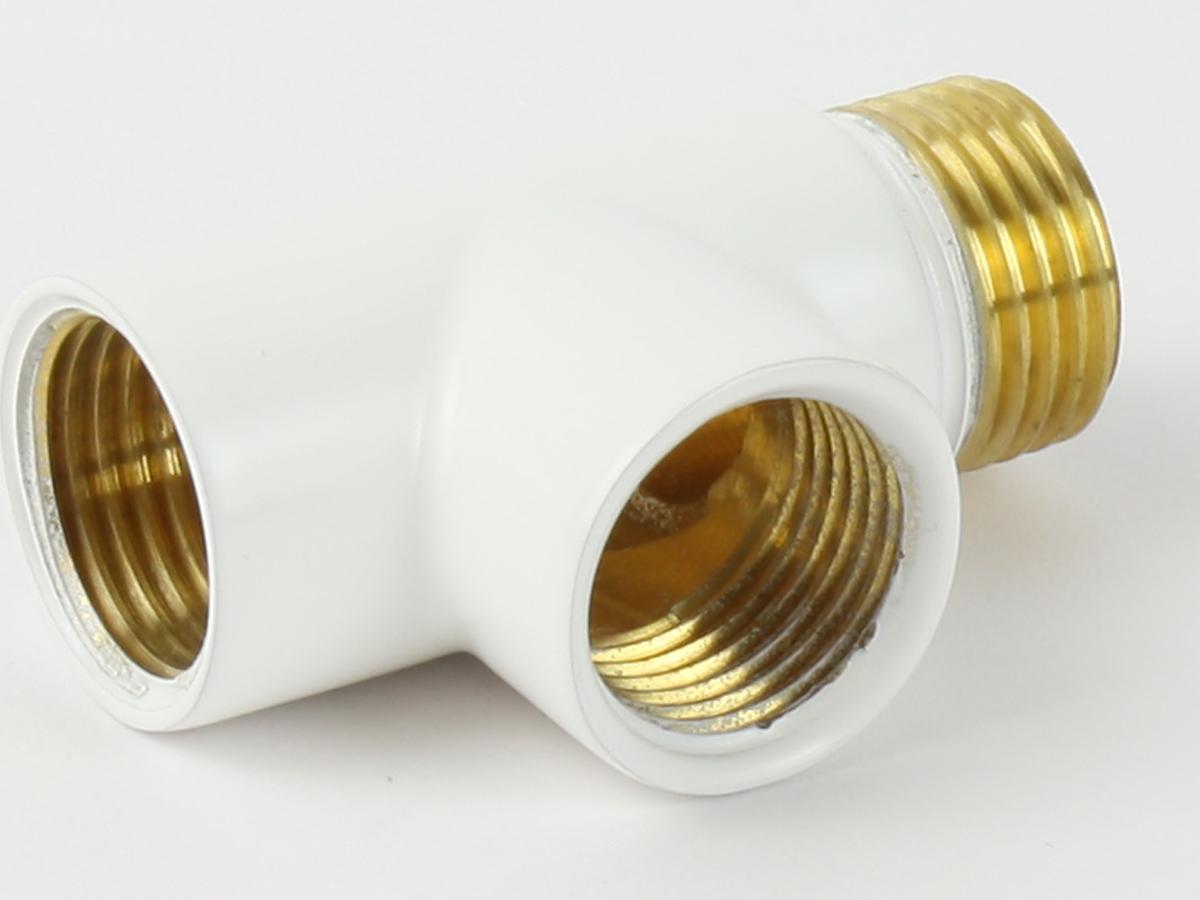

Dual Fuel White T-Piece Connector for Towel Rails (1/2" BSP)

A dual fuel T-piece connector is a plumbing adaptor used in towel rail heating systems to allow both central heating (hydronic) and an electric heating element to operate through a single 1/2" BSP inlet.

This white dual fuel T-piece connector is designed for modern UK and European bathrooms, enabling a towel rail radiator to switch between boiler-powered heating in winter and independent electric heating in summer without modifying pipework.

What This Product Does (Simple Explanation)

This fitting splits a single radiator inlet into two controlled pathways:

• One path connects to your electric heating element
• The other connects to your radiator valve / central heating return

Designed to pair flawlessly with white towel radiators, this component allows a towel rail to operate as a true dual fuel heating system, giving year-round flexibility and energy efficiency.

Key Benefits

Dual Fuel Operation

Use central heating in winter and switch to electric-only heating in summer when the boiler is off.

Clean White Finish

Gloss white powder-coated exterior designed to match white towel rails and maintain a seamless bathroom aesthetic.

Universal UK Compatibility

Fits standard 1/2" BSP towel rail and radiator connections used across UK and European heating systems.

Space-Saving Design

Combines two heating inputs into a single inlet point without additional pipework modifications.

Durable Brass Core

Solid brass internal structure for corrosion resistance, pressure stability, and long-term reliability.

Technical Specifications

How It Works

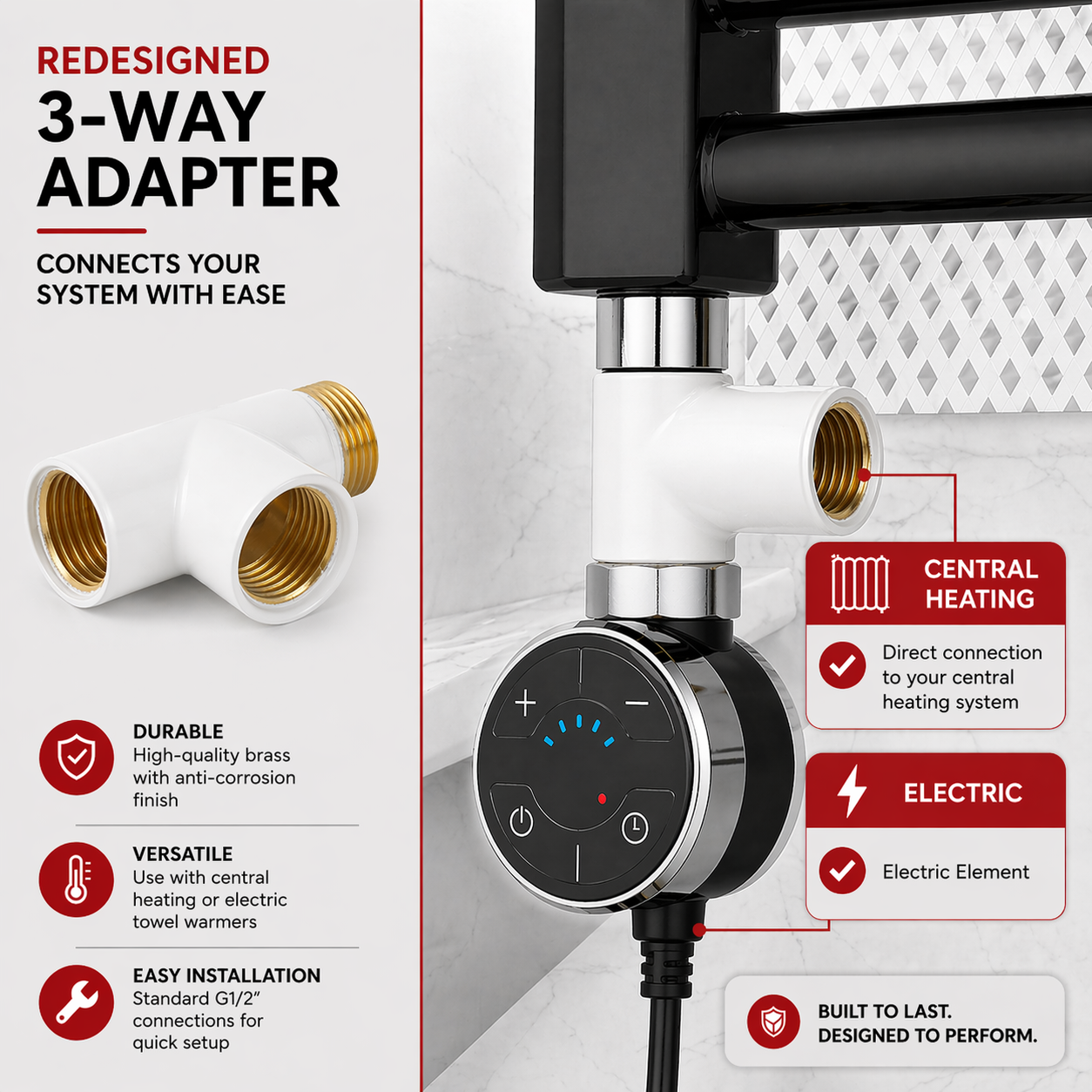

Installed at the bottom inlet of a towel rail radiator, the T-piece divides the connection into two independent flow paths.

• Vertical port: accepts the electric heating element
• Side port: connects to radiator valve and central heating return

This configuration enables safe operation of both heating systems without interference.

Installation Guide

Important: Ensure the heating system is turned off and fully depressurised before installation.

1. Screw the T-piece into the towel rail bottom inlet
2. Apply PTFE tape or thread sealant to all threaded joints
3. Insert the electric heating element vertically into the designated port
4. Connect the radiator valve to the side outlet
5. Tighten all connections securely using a suitable wrench
6. Test system thoroughly for leaks before activation

Installation Tip: Always install the electric heating element through the vertical port only. This ensures correct heat distribution and safe operation of the dual fuel system.

Common Mistakes to Avoid

• Installing the electric element into the side port instead of vertical port
• Forgetting PTFE tape on BSP threads (causes leaks)
• Using incompatible non-1/2" BSP fittings
• Over-tightening and damaging brass threads

Compatibility

This connector is compatible with:

• UK standard towel rail radiators
• European hydronic heating systems
• All 1/2" BSP electric heating elements
• Manual and thermostatic radiator valves (15mm standard systems)

Why Use a T-Piece Instead of Separate Valves?

A T-piece connector simplifies dual fuel installation by combining both heating inputs into a single inlet. Unlike separate valve systems, it reduces pipework complexity, improves installation speed, and maintains a cleaner aesthetic behind the radiator.

Frequently Asked Questions

What is a dual fuel T-piece connector?
It is a fitting that allows a towel rail to use both central heating and electric heating through one inlet.

Is it compatible with all towel rails?
Yes — as long as the radiator uses standard 1/2" BSP connections.

Do I need a plumber to install it?
Installation is straightforward, but professional installation is recommended for safety and compliance.

Why choose a white finish?
White blends seamlessly with modern towel rails, avoiding the visual contrast of chrome fittings.

Can it be used year-round?
Yes — use central heating in winter and electric mode in summer.

Summary & Verdict

This premium dual fuel towel rail T-piece connector (1/2" BSP) is the ideal choice for converting standard radiators into highly efficient dual-energy heating systems. By enabling clean, dual-source operation through a single entry point, it provides ultimate year-round temperature control without sacrificing the minimalist aesthetic of your modern bathroom layout.
