Electric Towel Radiator Heating Element with Thermostat & Timer – 300W / 500W

Electric Towel Radiator Heating Element – 300W & 500W | Black & Chrome

Convert a compatible towel radiator for standalone electric operation with this thermostatic electric towel radiator heating element. Available in 300W and 500W power options and a choice of Black or Chrome, it provides adjustable temperature control together with a convenient timed BOOST function.

Designed for electric towel radiators and heated towel rails, the controller allows the temperature to be adjusted between 45°C and 65°C. The BOOST function can run the element for 1 to 5 hours before automatically switching off, making it useful for warming and drying towels when required.

The element uses a standard 1/2" BSP threaded connection and is available with an approximately 300mm heating rod in the 300W version or 450mm heating rod in the 500W version.

Quick Product Facts

• Product Type: Thermostatic electric towel radiator heating element
• Power Options: 300W or 500W
• Colour Options: Black or Chrome
• Element Connection: 1/2" BSP
• Voltage: AC 220–240V / 50–60Hz
• IP Rating: IPX4
• Adjustable Temperature: 45°C–65°C
• Temperature Increments: 5°C
• BOOST Timer: 1–5 hours
• BOOST Temperature: Fixed at 65°C
• Automatic Shut-Off: Yes – after the selected BOOST period
• Controller Size: Approx. 60mm wide × 60mm high × 40mm deep
• Cable Length: Approx. 1.15m

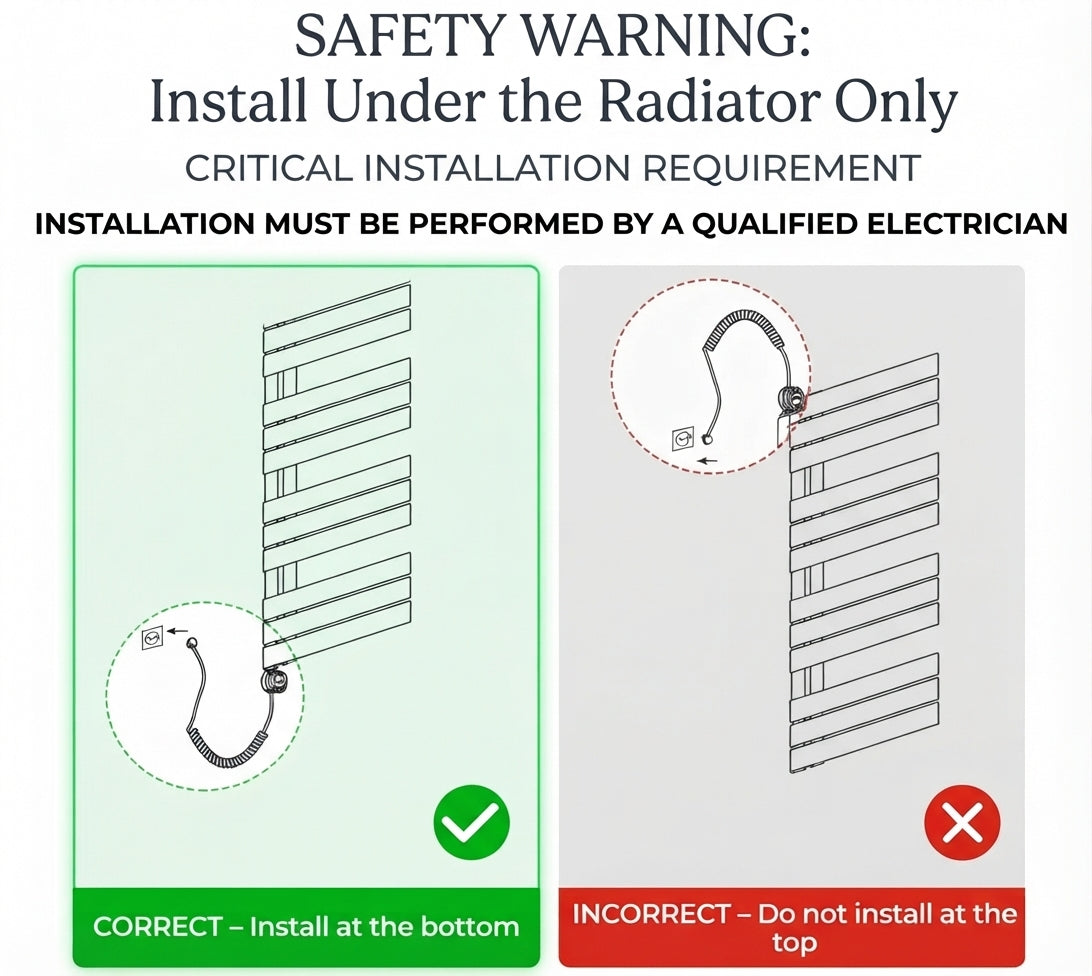

• Installation Position: Bottom-mounted vertically
• Heating Type: Standalone electric operation

300W & 500W Electric Element Options

*Element length: Measured from the threaded connection. Always check the available internal space inside your towel radiator and the required element wattage before ordering.

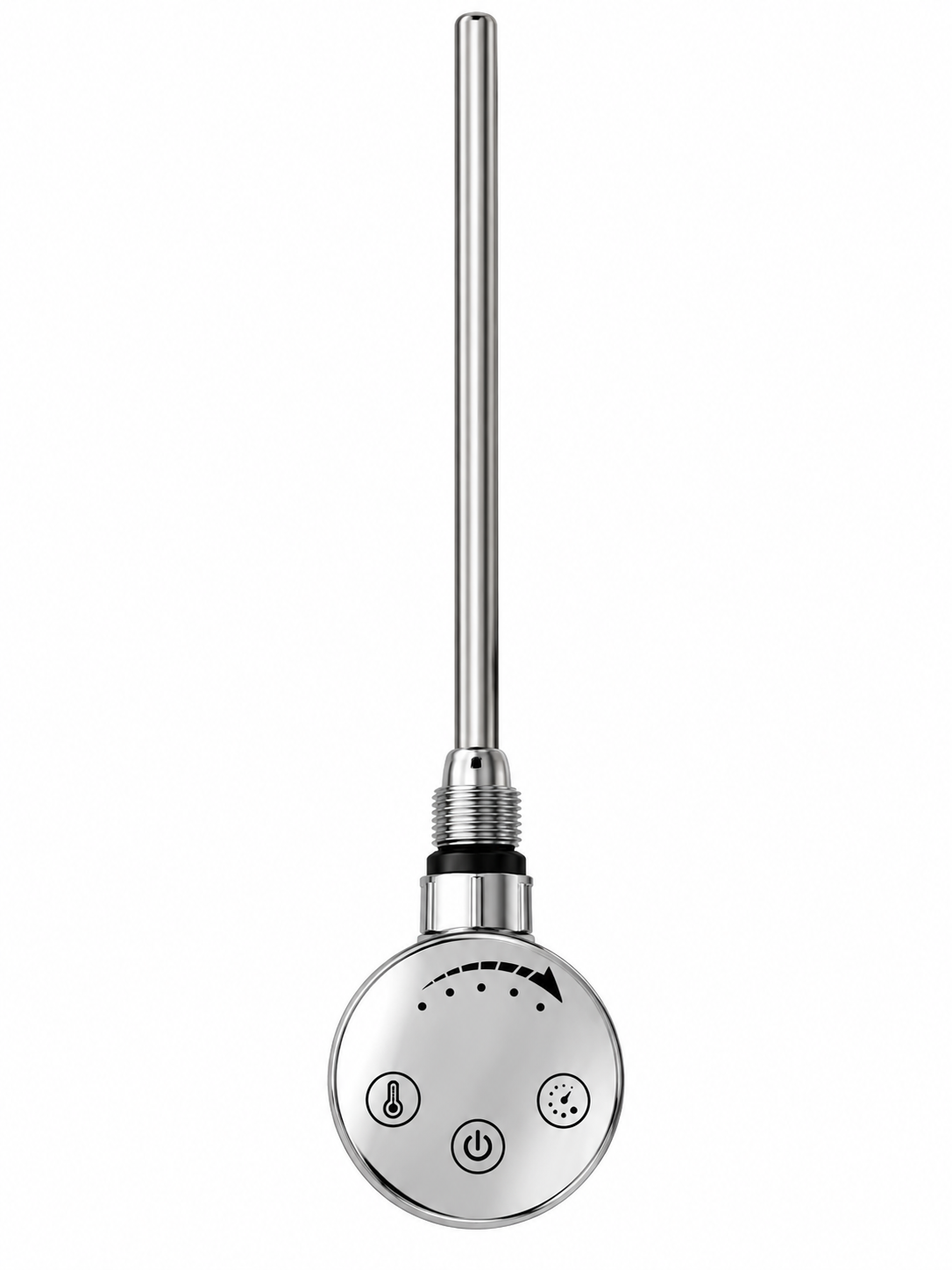

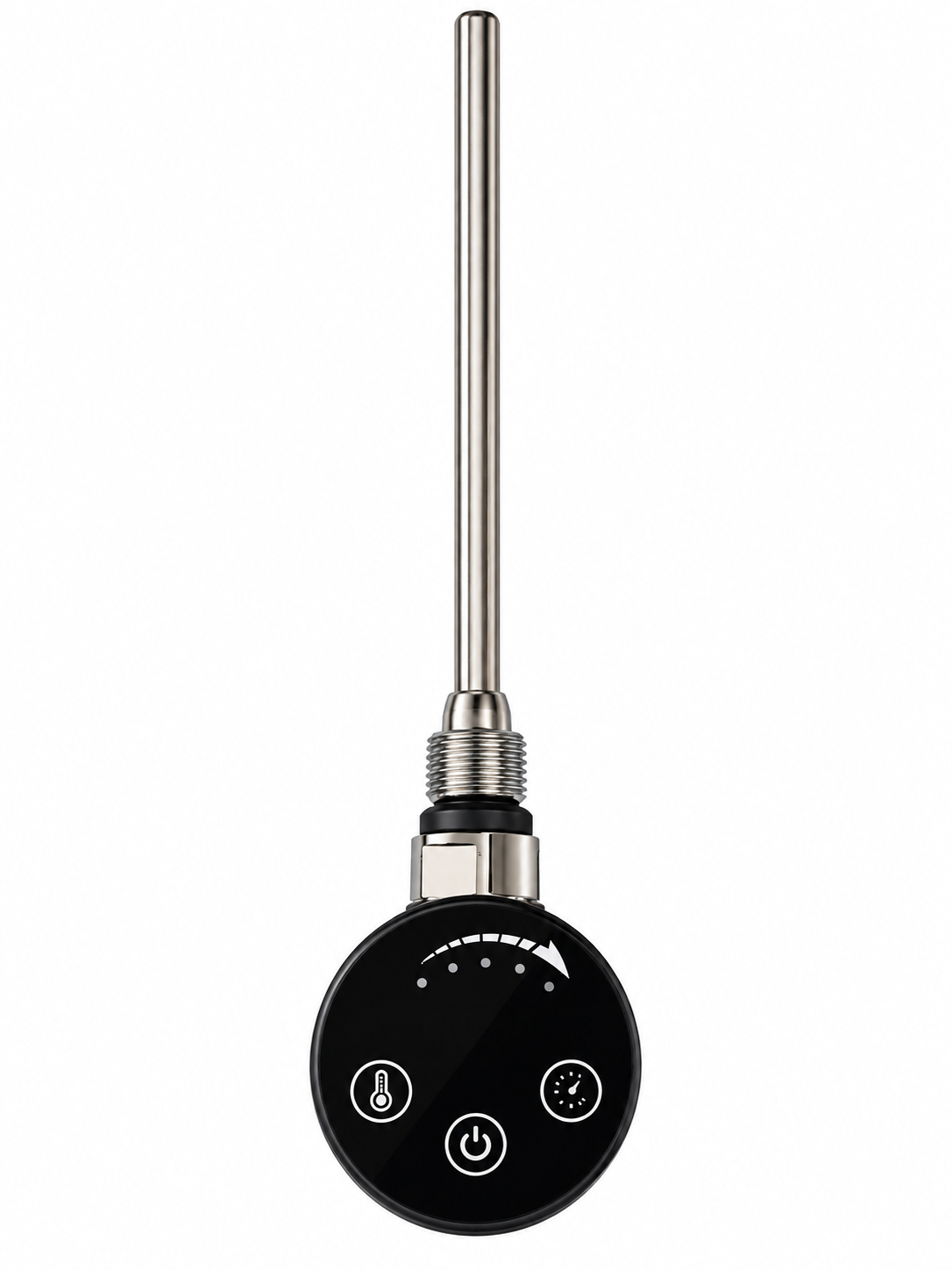

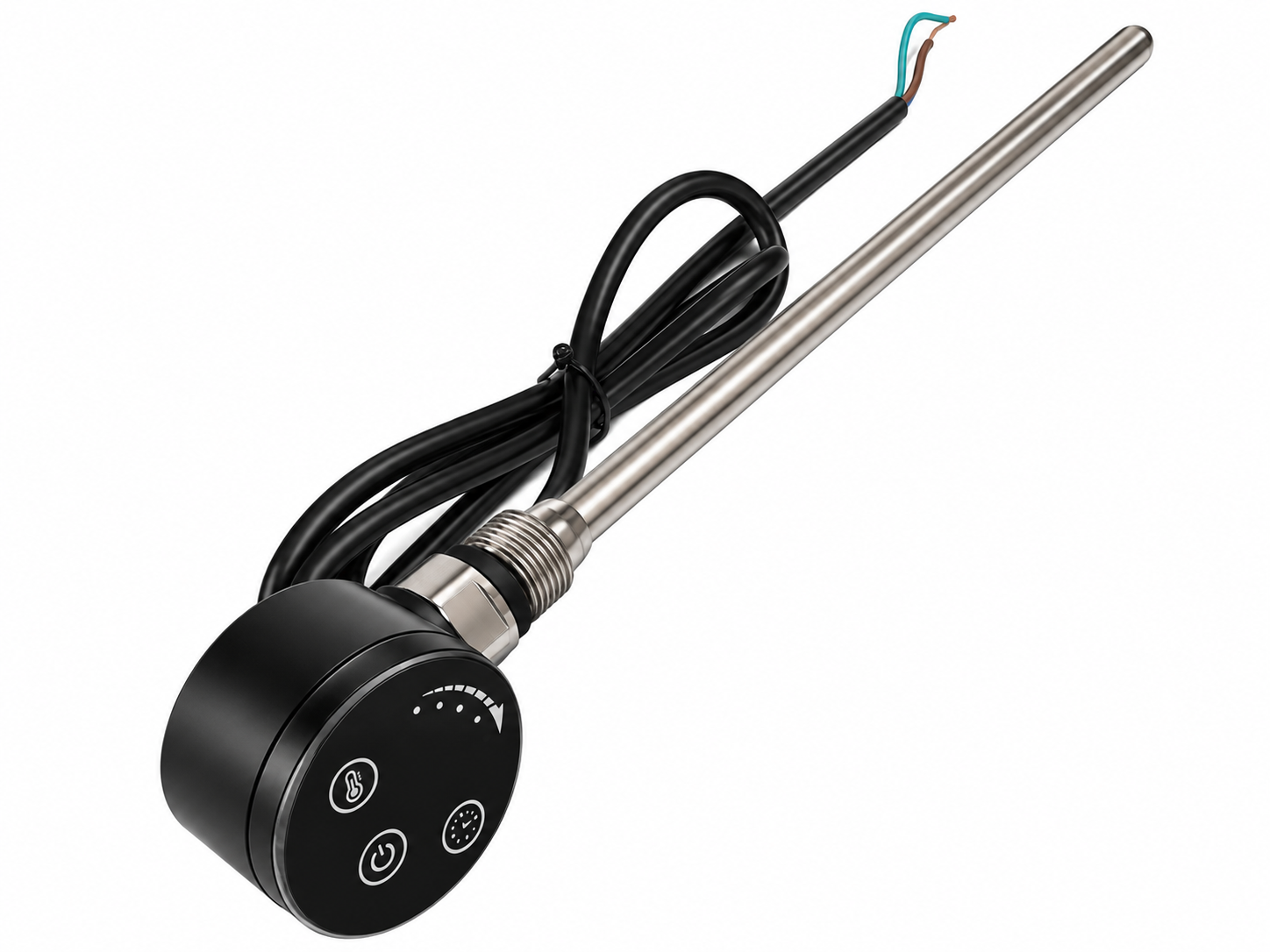

Available in Black or Chrome

Choose between Black and Chrome to coordinate the controller with your towel radiator and bathroom fittings. The black version works particularly well with modern black towel radiators and matching accessories, while the chrome version provides a coordinated appearance with polished chrome towel rails, taps, showers and bathroom fittings.

Adjustable Temperature Control

In normal constant-temperature operation, the heating element can be set between 45°C and 65°C. Temperature is adjusted in 5°C increments, providing five settings:

• 45°C
• 50°C
• 55°C
• 60°C
• 65°C

The default constant-temperature setting is 65°C. Once the desired temperature has been selected, the controller enters its working state after approximately five seconds without further input.

1–5 Hour BOOST Timer

The built-in BOOST mode provides timed heating for 1, 2, 3, 4 or 5 hours. Each blue indicator represents one hour, and the default BOOST setting is 2 hours.

During BOOST mode, the heating temperature is fixed at 65°C. Once the selected heating period has finished, the element automatically switches off.

This is particularly useful when you want to warm or dry towels for a set period without leaving the heating element operating continuously.

Simple LED Heating Status

The controller uses LED indicators to make its operating status easy to identify. When the element is actively heating, the light at the power button displays red. When the element is powered but not currently heating, the indicator displays blue.

Why Choose an Electric Towel Radiator Element?

A standalone electric towel radiator does not need to operate as part of your home's central heating circuit. When fitted to a suitable towel radiator and correctly filled, the electric element heats the radiator independently using electricity.

This can be particularly useful when you want warm, dry towels without switching on the whole central heating system. If you are deciding between standalone electric and dual fuel heating, read our Electric vs Dual Fuel Towel Radiators guide .

• Suitable for creating a standalone electric towel radiator
• Independent operation without running the central heating system
• Adjustable temperature from 45°C to 65°C
• Five temperature settings in 5°C increments
• 1–5 hour timed BOOST function
• Automatic shut-off at the end of BOOST mode
• Choice of 300W or 500W
• Choice of Black or Chrome
• IPX4-rated controller
• Standard 1/2" BSP threaded connection
• Compact 60 × 60 × 40mm controller

Which Wattage Should I Choose?

The electric heating element should be correctly matched to the size and specification of your heated towel radiator. The 300W version has an approximately 300mm element rod, while the 500W version has an approximately 450mm element rod.

Always check both the towel radiator manufacturer's recommended electric element wattage and the available internal space before ordering. Do not select an element based on physical rod length alone.

Installation & Compatibility

This heating element is intended for use with a compatible towel radiator suitable for standalone electric operation. The element uses a standard 1/2" BSP threaded connection.

Before installation, confirm that your towel radiator is suitable for electric use, has a compatible 1/2" BSP connection, provides sufficient internal space for the selected heating element and is suitable for the selected element wattage.

Converting a new towel radiator to electric-only operation? Follow our How to Convert a Towel Radiator to Electric Only – Step-by-Step UK Guide for guidance on fitting the heating element, filling the radiator, leaving expansion space, installing the plugs and air vent, checking for leaks and preparing the radiator for electric use.

Need help using the controller? View the Electric Towel Radiator Heating Element User Manual for instructions covering temperature adjustment, BOOST mode, timer settings and controller operation.

For further information about electrical installations in UK bathrooms, see our UK Bathroom Electrical Zones guide .

Frequently Asked Questions

Is this a standalone electric towel radiator element?
Yes. This heating element is intended for use with a compatible towel radiator configured for standalone electric operation. It does not need to operate as part of your central heating system.

Is this a dual fuel conversion kit?
No. This product is the electric heating element only for a suitable standalone electric towel radiator installation. It is not supplied as a dual fuel conversion kit.

Can I use the towel radiator without switching on my central heating?
Yes. When correctly installed as a standalone electric towel radiator, the element heats the radiator independently from your home's central heating system.

What temperatures can I select?
Constant-temperature mode can be adjusted from 45°C to 65°C in 5°C increments: 45°C, 50°C, 55°C, 60°C and 65°C.

What does BOOST mode do?
BOOST mode operates at a fixed 65°C for a selected period between 1 and 5 hours. The heating element automatically switches off when the selected BOOST period has finished.

What is the default BOOST time?
The default BOOST heating period is 2 hours. The time can be adjusted between 1 and 5 hours.

What size connection does the element use?
The heating element uses a standard 1/2" BSP threaded connection for compatible heated towel radiators.

What is the difference between the 300W and 500W versions?
The heating power and element rod length are different. The 300W version has an element approximately 300mm long, while the 500W version has an element approximately 450mm long. Select the wattage appropriate for your compatible towel radiator.

How big is the controller?
The controller measures approximately 60mm wide × 60mm high × 40mm deep.

How long is the electrical cable?
The supplied cable is approximately 1.15 metres long.

Is the element available in different colours?
Yes. The controller is available in Black or Chrome, allowing you to coordinate the element with your towel radiator and other bathroom fittings.

Is the controller IP rated?
Yes. The controller is rated IPX4. Correct installation and compliance with applicable UK bathroom electrical requirements are still required.

Where can I find installation instructions?
For guidance on converting and filling a compatible towel radiator for electric-only use, read our electric-only towel radiator installation guide . For instructions on operating this specific controller, see the heating element user manual .
