Black Digital Dual Fuel Towel Radiator Heating Element Kit – 300W / 500W

Black Digital Dual Fuel Towel Radiator Kit – 300W & 500W

Convert a compatible heated towel radiator to dual fuel operation with this black digital dual fuel towel radiator kit. The kit includes a thermostatic digital heating element, black T-piece, black blanking plug and one black angled radiator valve.

Available in 300W and 500W versions, the digital heating element provides adjustable temperature control, timer operation and weekly programming. A correctly installed dual fuel setup allows your towel radiator to operate from the central heating system or independently using the electric element.

This makes dual fuel particularly useful during spring and summer when you want warm, dry towels without switching on the whole central heating system. The matching black components provide a coordinated finish for modern black towel radiators and contemporary bathroom fittings.

Quick Product Facts

• Product Type: Digital dual fuel towel radiator heating element kit
• Colour: Black
• Power Options: 300W or 500W
• Element Connection: 1/2" BSP
• Voltage: AC 220–240V / 50–60Hz
• IP Rating: IPX4
• Temperature Range: 30°C–70°C
• Timer: 30 minutes to 8 hours
• Weekly Programming: Yes
• Constant Temperature Mode: Yes – preset at 50°C
• Digital Display: Yes
• Control Lock: Yes
• Controller Size: Approx. 70mm wide × 70mm high × 40mm deep
• Cable Length: Approx. 1.15m
• Heating Options: Central heating and electric

300W & 500W Options

*Element length: Measured from the threaded connection. Please check the available internal space inside your towel radiator before ordering.

Digital Thermostatic Temperature Control

The integrated digital thermostatic controller provides greater control than a basic fixed-temperature heating element. In Free Mode, the temperature can be adjusted between 30°C and 70°C.

• Free Mode: Manually adjust the temperature between 30°C and 70°C.
• Timer Mode: Set a heating period from 30 minutes up to 8 hours.
• Constant Temperature Mode: Operates at a preset 50°C.
• Weekly Mode: Program heating periods across the week.
• Control Lock: Helps prevent accidental changes to the controller settings.

In Timer Mode, the heating temperature is preset at 65°C and the operating time can be adjusted from 30 minutes to 8 hours in 30-minute increments.

What Is a Dual Fuel Towel Radiator?

A dual fuel towel radiator can be heated using your central heating system or an electric heating element. During colder months, the towel radiator can operate as part of your normal central heating system. When the central heating is switched off, the electric element provides an alternative way to heat the towel rail independently.

This provides greater flexibility throughout the year, particularly when you only want to warm or dry towels rather than switch on the whole central heating system. For a more detailed comparison, read our Electric vs Dual Fuel Towel Radiators guide .

What's Included?

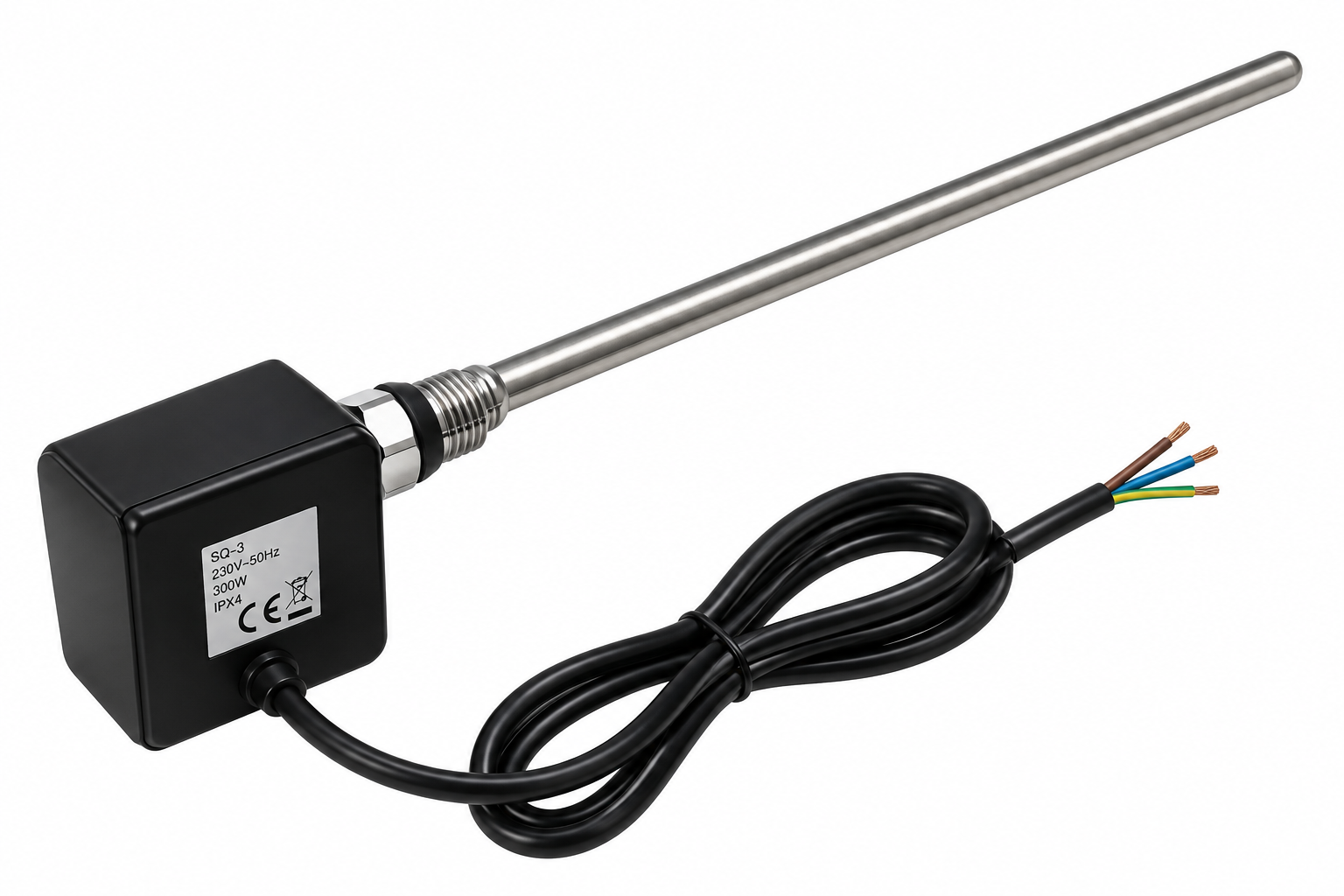

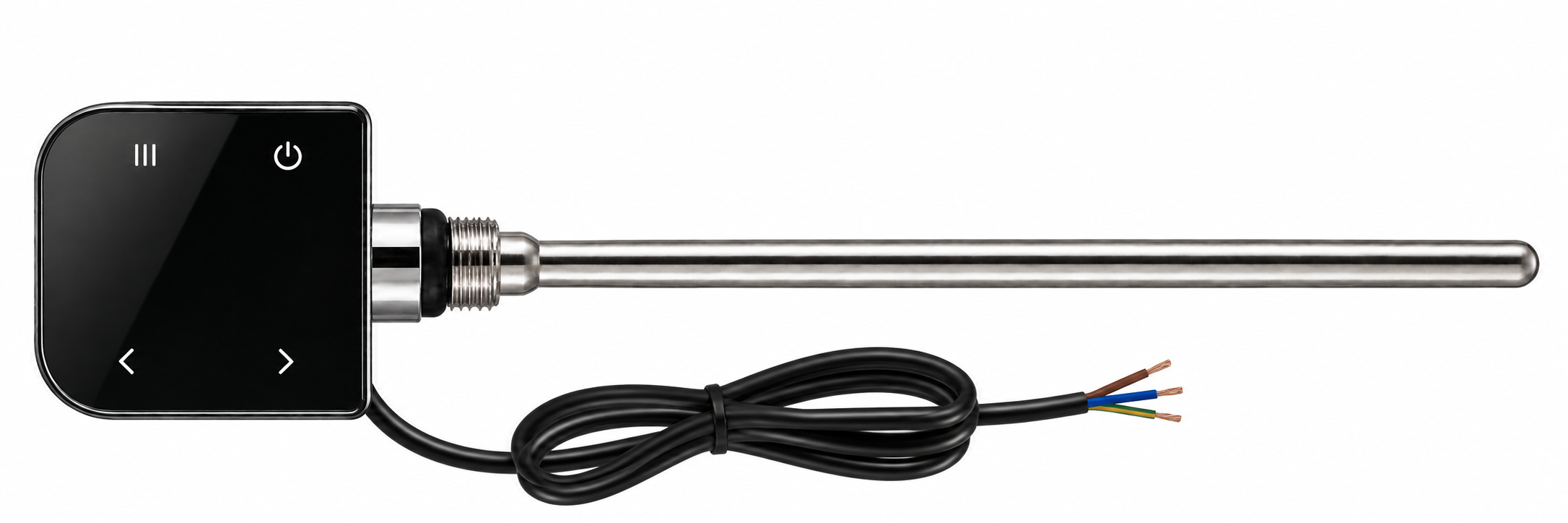

• 1 × Black digital thermostatic heating element – choose 300W or 500W

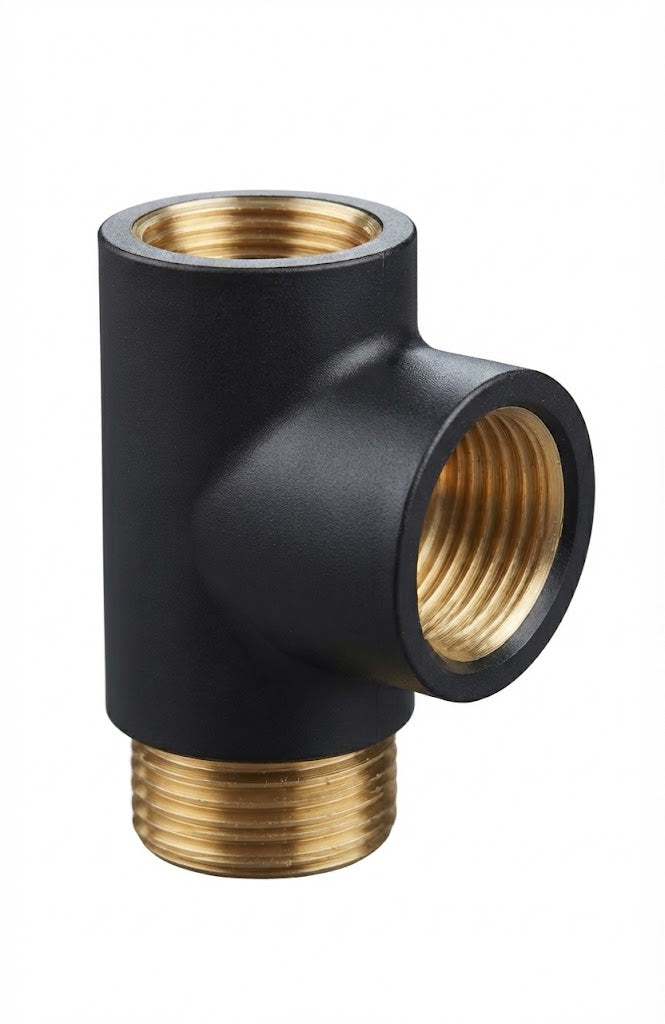

• 1 × Black dual fuel T-piece

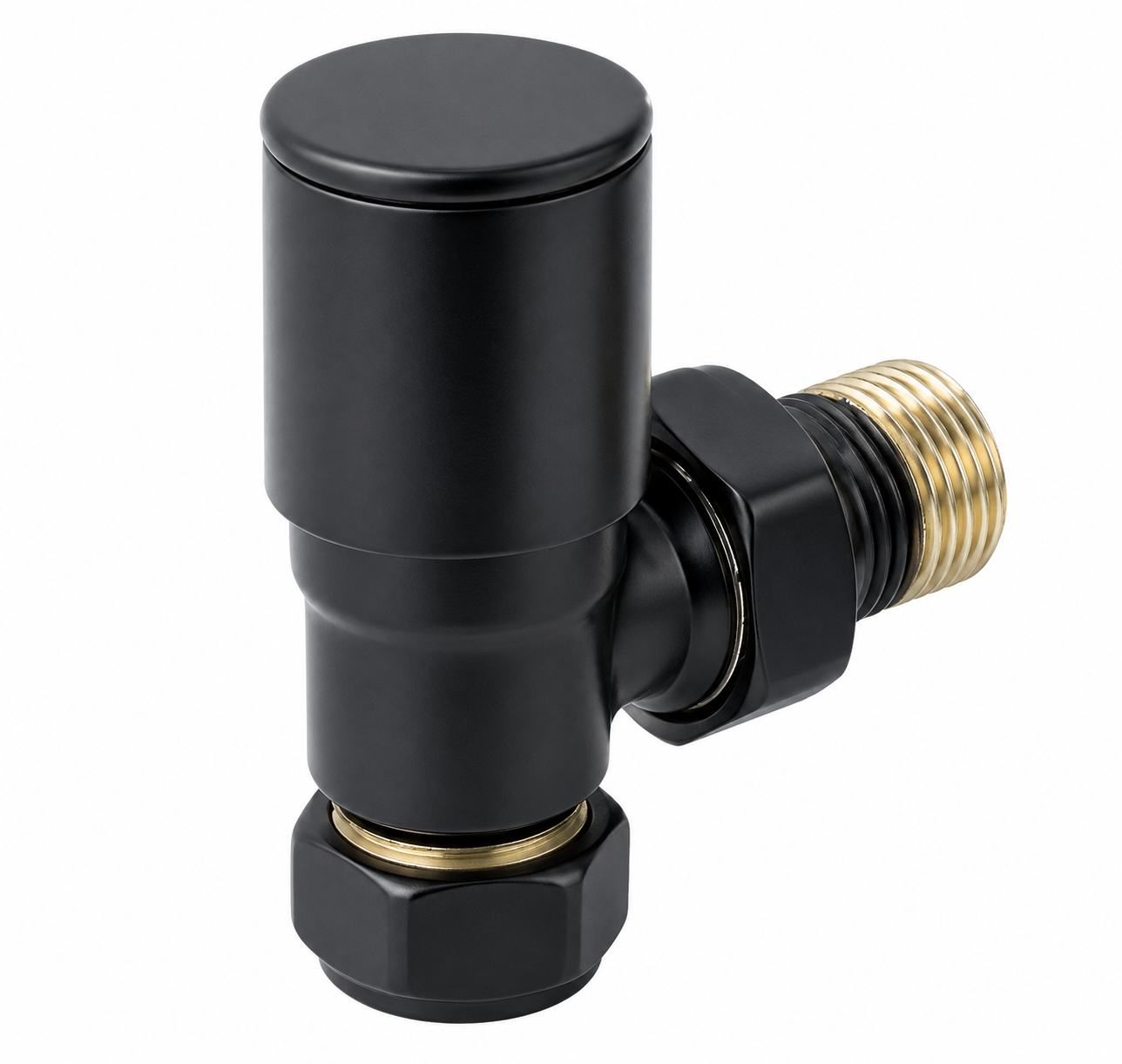

• 1 × Black angled radiator valve

Why Choose This Dual Fuel Kit?

• Use a compatible towel radiator independently from the central heating system
• Useful for warming and drying towels during warmer months
• Adjustable 30°C–70°C thermostatic temperature control
• 30-minute to 8-hour timer
• Weekly programmable heating schedule
• Choice of 300W or 500W heating element
• Digital display with control lock
• IPX4 (44) -rated controller
• Standard 1/2" BSP threaded element connection
• Matching black T-piece, angled valve and blanking plug included

Which Wattage Should I Choose?

The electric heating element should be correctly matched to the size and specification of your heated towel radiator. The 300W element measures approximately 300mm from the threaded connection, while the 500W element measures approximately 450mm.

Always check both the required element wattage and available internal radiator space before ordering. Do not select an element based on physical length alone.

Installation & Compatibility

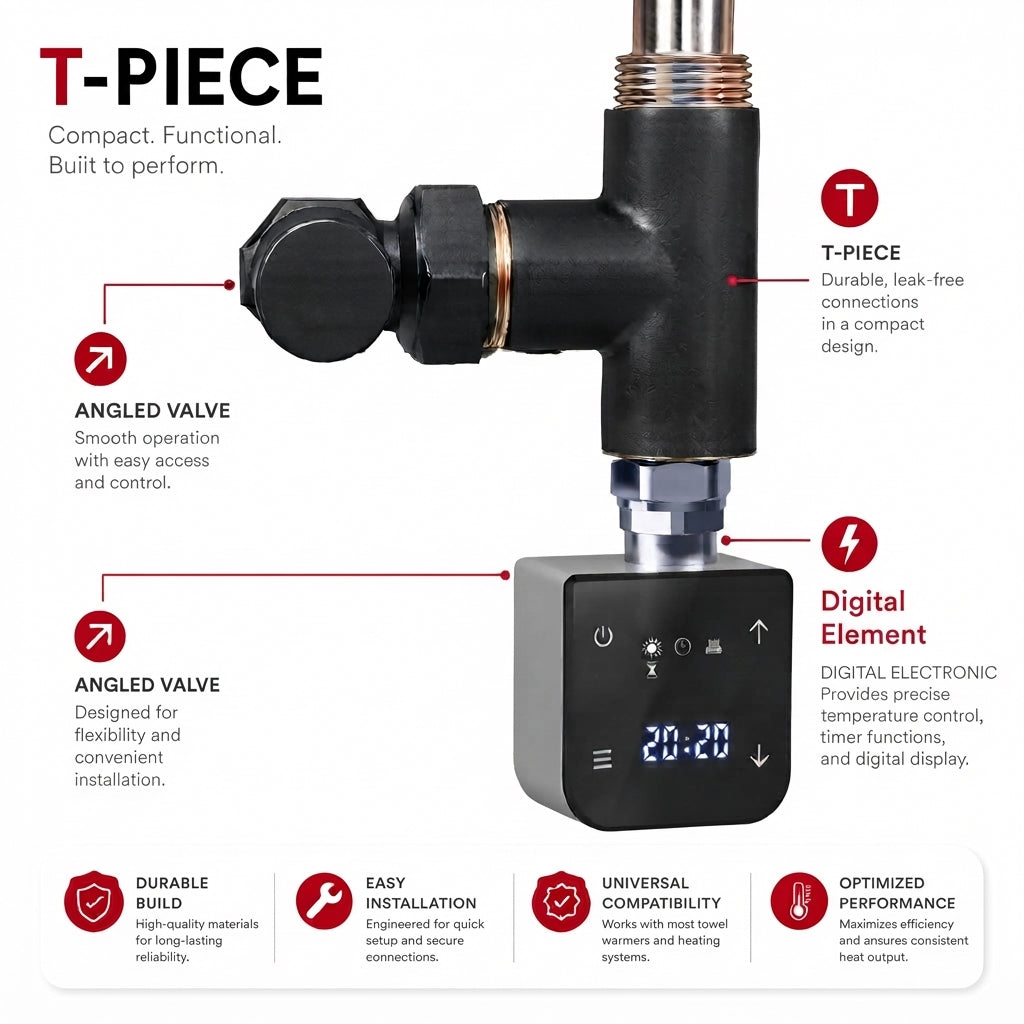

This kit is designed for converting a compatible heated towel radiator to dual fuel operation. The heating element uses a 1/2" BSP threaded connection. The T-piece allows the electric heating element and central heating connection to be used together, while the included angled valve provides the other central heating connection.

Before installation, confirm that your towel radiator is suitable for electric or dual fuel use, has a compatible 1/2" BSP connection, and that the selected element wattage is appropriate for the radiator.

Need installation guidance? Read our How to Convert a Towel Radiator to Dual Fuel Guide for a step-by-step overview of the conversion process.

Need help using the digital controller? View the Digital Heating Element User Manual for instructions covering temperature settings, timer operation, constant temperature mode, weekly programming and the control lock.

For further information about electrical installations in UK bathrooms, see our UK Bathroom Electrical Zones guide .

Frequently Asked Questions

Can I use this kit to convert a towel radiator to dual fuel?
Yes. The kit is designed to convert a compatible heated towel radiator for dual fuel operation, allowing it to use central heating or an electric heating element.

Can I use the electric element when the central heating is off?
Yes. When correctly installed for dual fuel operation, the electric element can heat the towel radiator independently from the central heating system.

What temperature can I set the digital element to?
In Free Mode, the temperature can be adjusted between 30°C and 70°C.

Does the heating element have a timer?
Yes. Timer Mode can be set from 30 minutes to 8 hours in 30-minute increments.

Can I program the towel radiator for different days?
Yes. Weekly Mode allows heating periods to be programmed across the week.

Is the digital controller IP rated?
Yes. The controller is rated IPX4. Installation location and electrical connection must still comply with applicable UK bathroom electrical requirements.

Does this heating element have Wi-Fi?
No. This version is operated directly from the digital controller and does not include Wi-Fi or app control.

What size connection does the heating element use?
The heating element has a standard 1/2" BSP threaded connection for use with compatible heated towel radiators and dual fuel fittings.

What is the difference between the 300W and 500W versions?
The heating power and element length are different. The 300W version has an element approximately 300mm long, while the 500W version has an element approximately 450mm long. Select the wattage appropriate for your compatible towel radiator.
