Which valve fits your pipework?
Straight inline valves: consider these when the pipework approaches in line with the radiator connection.
Angled valves: consider these when the pipework needs a 90° turn into the connection, such as pipework coming from the wall.
Check pipe diameter, connection direction and valve dimensions with your installer. Pipe position alone does not confirm compatibility. View valve specifications →
Delivery timing & exceptions
*For in-stock radiators ordered before 1pm on a working day. Orders after 1pm dispatch the next working day. Weekends, bank holidays and postcode exceptions can affect timing.
Check your selected option: valves are included only with a valve kit.
Ask us on WhatsApp 07949 448 870
Chat and WhatsApp daily, 7am–10pm UK time.
Free UK shipping on orders over £25 · 30-day returns: terms apply

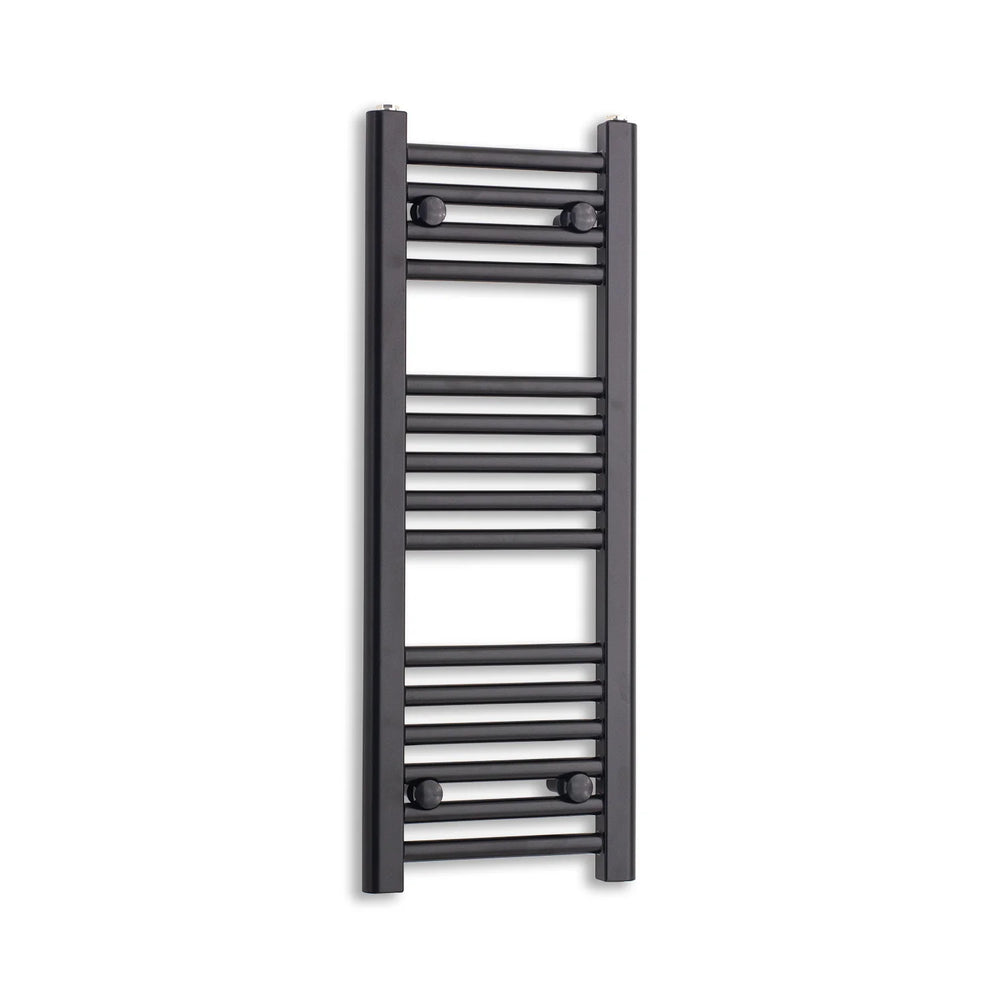

200mm Wide 800mm High Black Heated Towel Rail Radiator
Ultra-narrow 200mm width for cloakrooms, compact bathrooms and tight wall spaces.
£54.99
Available to order
- Size
- 200mm Wide x 800mm High
- Pipe Centres
- 150mm
- Heat Output
- 744 BTU/h | 218W
- Finish
- Matt Black
✓ 5 years warranty · 1 year on valves, heating elements and accessories. Terms apply.
Frequently bought together
Add optional accessories to your towel rail order. Check compatibility with your radiator and valve kit.
Dimensions & quick product facts
overall height
- Size
- 200mm Wide x 800mm High
- Pipe Centres
- 150mm
- Heat Output
- 744 BTU/h | 218W
- Material
- Steel
- Finish
- Matt Black
- Tube Layout
- 3 + 4 + 8 = 15 tubes
- Wall-to-Pipe Centres
- 75–95mm
- Projection
- 90–110mm
- Testing Standard
- Tested to BS EN 442
- Heating Options
- Central Heating / Electric-Only / Dual Fuel
- Warranty
- 5 years; terms apply
All dimensions are in millimetres. Allow extra space for valves, pipework and installation clearances. Confirm heat output at your system’s operating temperature before ordering.
Could this radiator heat your room?
Enter your room dimensions for a first estimate, then compare it with this radiator’s stated 744 BTU/h output.
Rough bathroom estimate using 50 W per m³. Insulation, glazing and external walls affect the requirement. Confirm radiator output at your system’s operating temperature with your installer. Electric use requires checking the element’s wattage separately. Use the full BTU calculator.
About 200mm Wide 800mm High Black Heated Towel Rail Radiator
200mm Wide x 800mm High Narrow Black Heated Towel Rail
The 200mm wide x 800mm high black heated towel rail radiator is an ultra-narrow towel rail designed for cloakrooms, small bathrooms, compact en-suites and other tight spaces where available wall width is limited. At only 200mm (20cm) wide, this slim towel radiator can fit narrow sections of wall where a standard-width heated towel rail may not be practical.
This taller 800mm model combines its space-saving 200mm width with 150mm pipe centres, 15 horizontal tubes and a stated heat output of 744 BTU/h (218W). The matt black finish provides a contemporary appearance and coordinates particularly well with black taps, shower fittings and radiator valves.
View all narrow towel radiators to compare other space-saving sizes for cloakrooms, en-suites and small bathrooms.
5-Year Warranty | Free UK Delivery | UK StockNarrow Towel Rail for Cloakrooms, En-Suites & Tight Spaces
Finding a heated towel rail for a cloakroom, narrow bathroom or tight wall space can be difficult because many standard towel radiators require considerably more horizontal room. With an overall width of just 200mm, this ultra-slim model is particularly suited to installations where every centimetre of wall space matters.
Its narrow profile can make it suitable for small bathrooms, downstairs cloakrooms, compact en-suites and restricted wall spaces, including narrow sections of wall beside bathroom furniture or sanitaryware. Always check the full radiator dimensions, required clearances and installation position before ordering.
Rather than increasing the width, this model uses its 800mm height to provide additional heated surface area while retaining the space-saving 200mm profile. It has 15 horizontal tubes arranged in a 3 + 4 + 8 configuration, providing more heated surface area than the shorter 200mm x 600mm model.
Matt Black Finish for Contemporary Bathrooms
The matt black finish gives this narrow towel radiator a clean, contemporary appearance and provides an alternative to traditional polished chrome.
It can be coordinated with black taps, shower fittings, radiator valves and other bathroom accessories, or used to create contrast against lighter tiles and wall finishes.
744 BTU/h Heat Output
The stated heat output of this 200mm x 800mm narrow towel radiator is 744 BTU/h (218W). Its taller 800mm format provides greater heated surface area than the shorter 200mm x 600mm model while maintaining the same ultra-narrow width.
Always compare the 744 BTU/h output with your room's calculated heating requirement before ordering. In larger bathrooms, an ultra-narrow towel radiator may need to work alongside another heat source depending on the required room heat output.
Use our BTU calculator to estimate the heating output required for your bathroom.
150mm Pipe Centres & Installation Dimensions
The radiator has 150mm pipe centres, measured from the centre of one radiator connection to the centre of the other. Checking this measurement is particularly important when replacing an existing towel radiator or working with existing pipework.
Allow approximately 75–95mm from the finished wall to the pipe centres and approximately 90–110mm overall projection from the wall, depending on bracket adjustment and installation.
Before You Order
- Check available wall space: 200mm wide x 800mm high
- Check your required pipe centres: 150mm
- Allow approximately 90–110mm projection from the wall
- Check the 744 BTU/h / 218W output against your room's heating requirement
- Radiator valves are not included unless specifically stated
Choose Your Heating Option
This 200mm x 800mm black towel radiator is supplied for connection to a standard central heating system.
The same size can also be offered in electric-only and dual-fuel configurations using the appropriate heating element and installation accessories. Separate electric-only and dual-fuel versions should be selected where available.
Radiator valves and additional heating accessories are not included unless specifically stated. View radiator valves and accessories.
What's Included?
- 200mm x 800mm flat black heated towel rail radiator
- Adjustable black wall brackets
- Screws, raw plugs and washers
- Blanking plug
- Air vent / bleeding plug

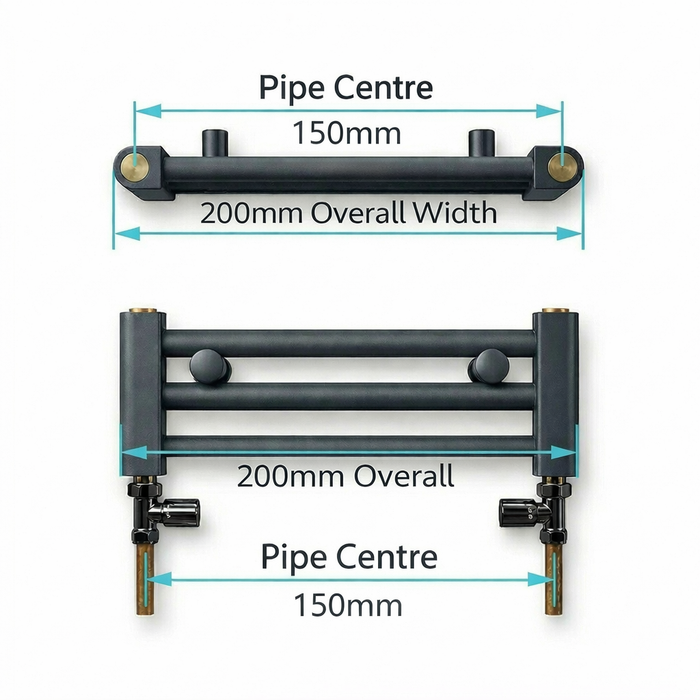

Pipe centres & installation diagram
Delivery, returns & warranty
Check delivery details and the return policy. This product has a 5 years warranty; terms apply.
Questions about 200mm Wide 800mm High Black Heated Towel Rail Radiator
What are the dimensions of this black towel radiator?
It measures 200mm wide x 800mm high. Its ultra-narrow 200mm width makes it particularly useful for bathroom walls where horizontal space is restricted.
What are the pipe centres?
The pipe centres are 150mm, measured from the centre of one radiator connection to the centre of the other.
What is the heat output?
The stated heat output is 744 BTU/h (218W). Check this against your calculated room heating requirement before ordering.
How many tubes does this narrow towel radiator have?
It has 15 horizontal tubes arranged in a 3 + 4 + 8 configuration.
Is this narrow towel rail suitable for a cloakroom or small bathroom?
Its 200mm width makes this an ultra-narrow towel radiator for installations where horizontal wall space is limited, including cloakrooms, small bathrooms, compact en-suites and other tight spaces. However, suitability as the main room heat source depends on the room's calculated heating requirement, so compare the stated 744 BTU/h (218W) output with your required BTU before ordering.
What is the difference between the 200mm x 600mm and 200mm x 800mm models?
Both models have the same ultra-narrow 200mm width and 150mm pipe centres. This 800mm-high model provides additional vertical heated surface area and has 15 tubes with a stated output of 744 BTU/h (218W), making it the taller option where additional wall height is available.
Can a 200mm wide towel radiator fit into a tight wall space?
The 200mm (20cm) overall width is specifically useful where available wall width is limited. This can include narrow sections of wall in cloakrooms, en-suites and small bathrooms. Always allow sufficient space for the radiator, valves and installation clearances before ordering.
How far does the radiator project from the wall?
The approximate overall projection is 90–110mm, depending on bracket adjustment and installation.
Can this towel radiator be used with central heating?
Yes. This version is suitable for connection to a standard central heating system. Electric-only and dual-fuel versions can also be created using the appropriate heating element and installation accessories.
Are radiator valves included?
No. Radiator valves are not included unless specifically stated in the product listing.
What warranty comes with 200mm Wide 800mm High Black Heated Towel Rail Radiator?
This towel radiator comes with a five-year warranty. Valves, heating elements and accessories have a one-year warranty. Terms apply.
