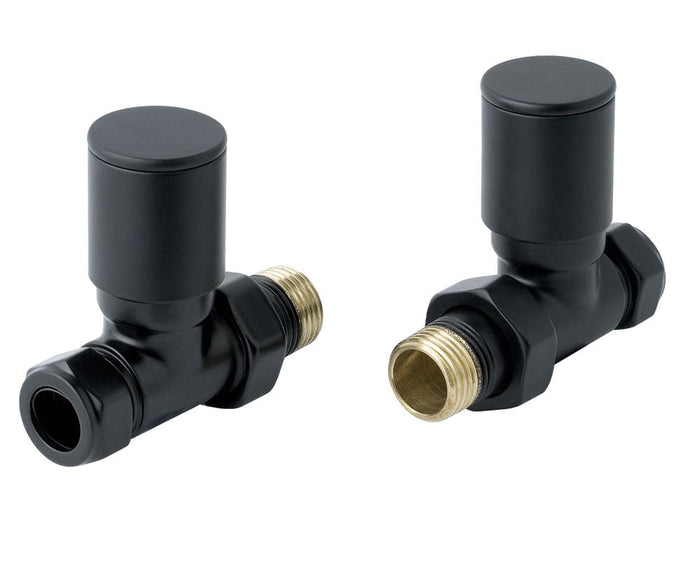

The Modern Black Straight 10mm Radiator Valve Pair is designed for towel rails and radiators where pipework rises straight up from the floor. It provides a clean inline connection between 10mm microbore heating pipes and standard 1/2" BSP radiator tappings, making it ideal for UK bathroom installations using small-bore systems.

📋 Key Features

Straight inline design for floor-fed pipework
Compatible with 10mm microbore systems

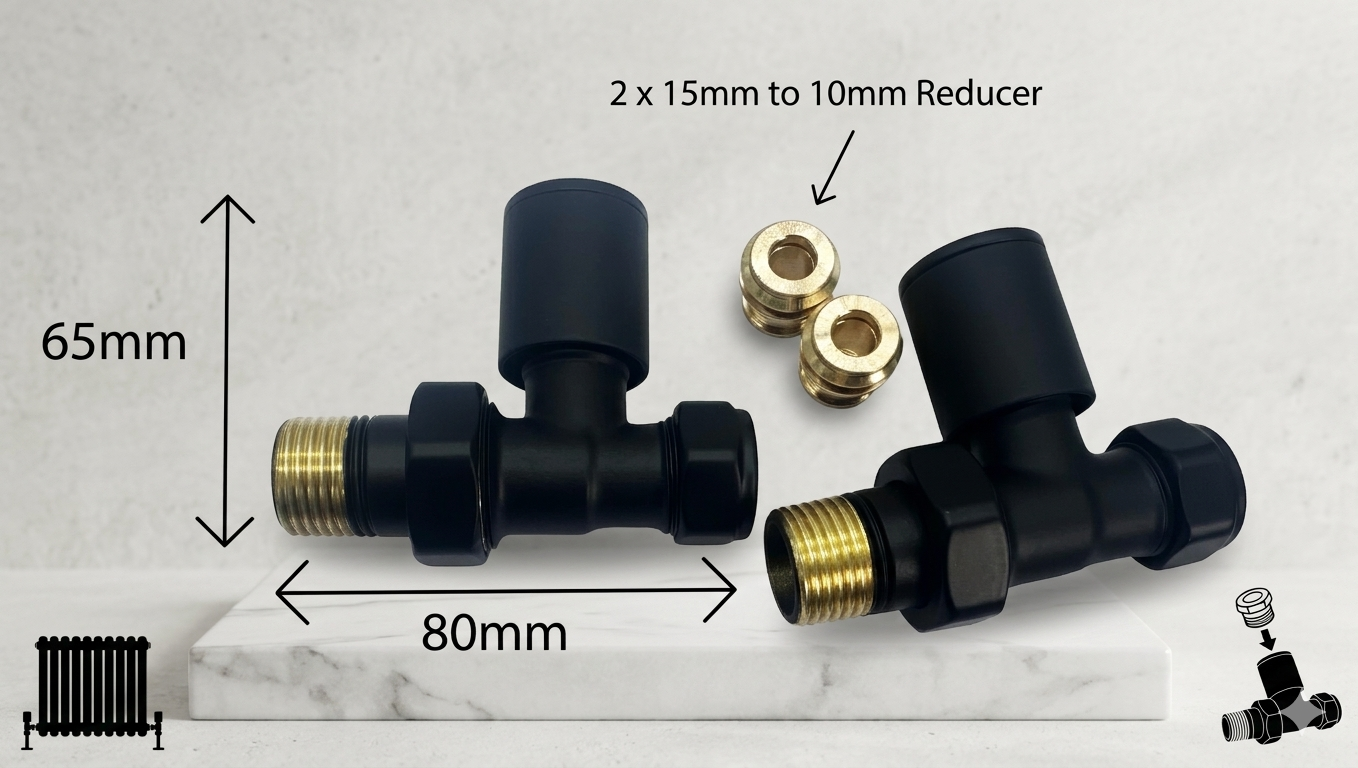

Includes 15mm to 10mm internal reducer inserts
1/2" BSP connection for UK towel rails and radiators
Durable brass construction with a matte black finish
Supplied as a matching pair (flow + return)

🔍 When to Use This Valve

Use this straight valve pair when your heating pipes come vertically up from the floor and connect directly into the bottom of a towel rail or radiator.

This is the standard configuration for:

Modern UK bathrooms with floor-fed pipework
10mm microbore central heating systems
Straight vertical radiator installations

Note: If your pipework comes from the wall or requires a 90° turn, an angled valve is more suitable.

🛠️ System Compatibility

Pipework: 10mm copper microbore pipe & 10mm plastic barrier pipe (with insert sleeve).
Radiators: Heated towel rails, Designer Radiators, Vertical or Horizontal Radiators, Column Radiators & standard UK radiators with 1/2" BSP valve tappings.

📊 Technical Specifications

Feature	Specification
Valve Type	Straight inline (floor-fed)
Pipe Size	15mm or 10mm microbore (comes with 2 x reducer)
Connection	1/2" BSP
Material	Brass
Finish	Matte Black
Supply	Pair (flow + return)
Reducers	15mm → 10mm included

❓ Frequently Asked Questions

What is a straight radiator valve used for?

A straight radiator valve is used when pipework rises vertically from the floor and connects directly into the bottom of a radiator or towel rail without any bends.

Are the reducers visible once installed?

No. The 15mm to 10mm reducers sit internally within the valve and are not visible once fitted.

Can this be used with plastic pipe?

Yes. It is compatible with 10mm plastic barrier pipe when used with a proper internal pipe insert.

When should I use an angled valve instead?

Use an angled valve when pipework comes out of the wall or needs to turn 90 degrees into the radiator.

🔧 Installation Overview (Professional Use Recommended)

Isolate the heating system before installation.
Fit the internal reducer into the valve compression port.
Insert a pipe insert if using plastic pipework.
Tighten all compression fittings securely.
Balance the system flow using the lockshield valve.

📝 Technical Notes

Designed for UK domestic central heating systems.
Suitable for 10mm microbore pipe networks.
Provides inline vertical flow alignment.
Engineered for concealed reducer integration.
Compatible with standard towel rail valve spacing.

📦 Shipping & Delivery

Fast UK dispatch from local stock.
24-hour order processing on most items.
Tracked nationwide delivery available.
Free shipping available on qualifying orders.

⭐️ Why Choose This Valve

This valve is designed for installations where alignment, finish, and pipe routing precision matter. It removes the need for external adaptors by integrating the 10mm reduction internally, creating a cleaner and more professional bathroom finish.
